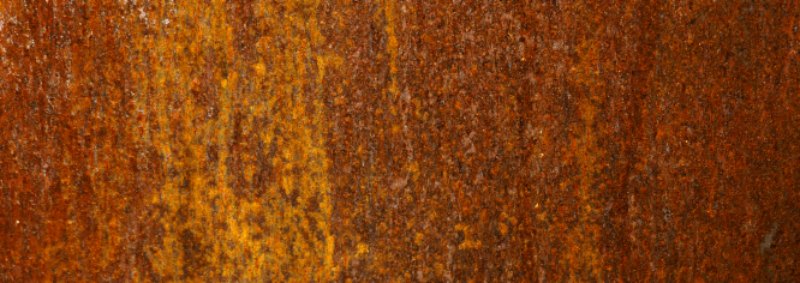

In architecture and landscape design inside, there is a kind of material, the older the more premium, the more used the more valuable, it is — Corten steel honeycomb panel.

With a built-in patina that develops over time, it requires neither painting nor maintenance, yet it reliably lasts for over 50 years. That is why it has become the standard choice for art museums, cultural and creative parks, cultural tourism projects, and premium residential gardens.

Why Do Designers Favor Corten Steel?

It is not ordinary rusty iron. After adding Cu, Cr, Ni alloy, surface will form a layer of dense protective rust layer, only rust surface, not corrode inside, the more used the more stable.

Key Advantages

· Ultra-long 50-year service life, with weather resistance 3 to 8 times that of ordinary steel.

· Lifetime maintenance-free – no painting or anti-corrosion treatment needed.

· Dynamic aesthetics – the colour evolves from light gold to orange-red to deep brown, gaining more charm over time.

· Class A1 fire-rated, safe and fully compliant.

· 100% recyclable, making it a green building material.

Say Goodbye to Traditional Corten Steel — Now with Corten Steel Weather-Resistant Metal Honeycomb Panels

Product integrates Corten steel's self-protective rust layer, time-aged aesthetics, ultra-long weather resistance, maintenance-free characteristics, with honeycomb structure's lightweight and high-strength, high flatness, sound and thermal insulation, extra-large panel size advantages, thoroughly solves traditional solid Corten steel's excessive self-weight, easy deformation, rust water staining, uncontrolled color difference, four major industry pain points, is high-end architectural curtain walls, industrial renovation, cultural tourism landscapes, interior commercial decoration's preferred upgraded material.

Traditional Corten Steel vs. WILLSTRONG Corten Steel Honeycomb Panels

Why Upgrade to Corten Steel Honeycomb Panels?

Compared with traditional solid Corten steel, Corten SteelWeather-Resistant Metal Honeycomb Panels combine the unique self-protective rust layer and time-aged appearance of weathering steel with the outstanding structural advantages of aluminum honeycomb technology.

This advanced composite structure provides:

· Self-protective weathering surface

· Natural aged appearance

· Ultra-long weather resistance

· Lifetime maintenance-free performance

· Lightweight yet high-strength construction

· Excellent flatness

· Sound insulation

· Thermal insulation

· Extra-large panel capability

Meanwhile, it effectively eliminates the common problems associated with traditional solid Corten steel, including:

· Excessive dead weight

· Panel deformation

· Rust runoff staining

· Uncontrolled colour variation

As a result, it has become an ideal upgraded material for:

· High-end architectural curtain walls

· Industrial renovation projects

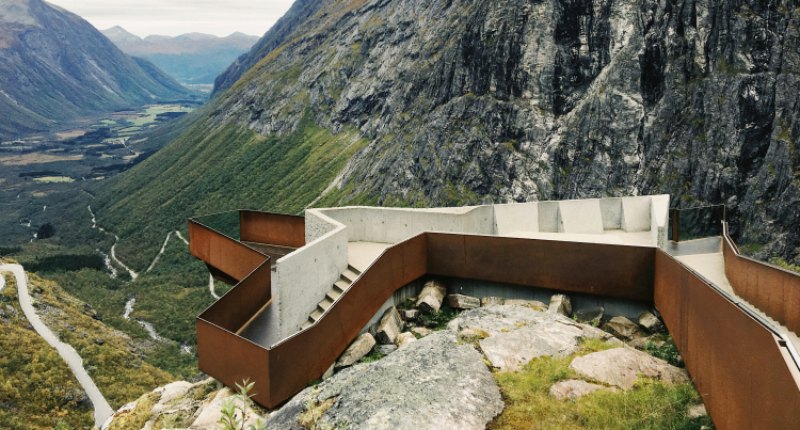

· Cultural tourism landscapes

· Interior commercial decoration

Structural Composition and Core Principles of Corten Steel Weather-Resistant Metal Honeycomb Panels

Understanding the structure and working principles of Corten Steel Weather-Resistant Metal Honeycomb Panels helps explain why they deliver superior durability, strength, and long-term architectural performance.

3.1 The Three-Layer Composite Structure

Corten Steel Weather-Resistant Metal Honeycomb Panels adopt a three-layer composite construction, combining weathering steel with an aluminum honeycomb core to achieve outstanding structural performance.

Face Sheet

Corten steel (weathering steel) thin plate

Provides:

· Decorative appearance

· Weather resistance

· Corrosion resistance

· Impact resistance

Core Layer

Aviation-grade aluminum honeycomb core

Provides:

· Bending resistance

· Shear resistance

· Sound insulation

· Thermal insulation

· Structural support

Back Sheet

Galvanized steel sheet / aluminum sheet / double-sided Corten steel

Provides:

· Structural balance

· Moisture resistance

· Corrosion resistance

· Long-term structural stability

3.2 Corten Steel Self-Protective Patina Mechanism – Core Technology

Corten steel contains Cu, Cr, Ni, and P as alloying elements. Under alternating wet-and-dry environmental conditions, the corrosion process unfolds as follows:

· In the initial stage, a loose surface rust forms.

· In the middle stage, this transforms into a dense, stable α-FeOOH passivated rust layer, approximately 50–100 μm thick.

· Ultimately, a natural protective layer is formed that effectively blocks oxygen, water vapor, and chloride ions from penetrating deeper.

This mechanism enables the rust layer itself to serve as the protective barrier, becoming more stable with prolonged exposure and requiring no maintenance throughout its service life.

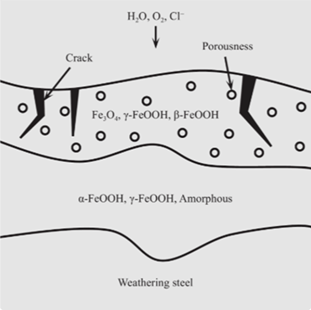

Rust Layer Self-Protective Mechanism

The weather resistance of Corten steel derives from its unique rust layer self-formation and self-passivation mechanism, which can be divided into three stages.

Initial Loose Rust Layer

When exposed to the atmosphere, the steel surface first forms a loose rust layer primarily composed of Fe₃O₄, γ-FeOOH, and β-FeOOH.

At this stage, the rust layer contains pores and micro-cracks, allowing corrosive agents such as moisture (H₂O) and oxygen (O₂) to still penetrate through.

Mid-Stage Densification and Transformation

Under natural alternating wet-and-dry conditions, the unstable phases within the rust layer (such as γ-FeOOH) gradually transform into stable, dense α-FeOOH (goethite), accompanied by the formation of amorphous corrosion products that fill the pores and cracks.

Final Stable Protective Layer

Ultimately, a composite rust layer structure is formed, consisting of a dense inner layer (dominated by α-FeOOH) and an outer layer.

This structure effectively blocks moisture, oxygen, and chloride ions (Cl⁻), creating a natural barrier that prevents further corrosion of the base steel, thereby achieving the effect that "the rust layer itself serves as the protective layer."

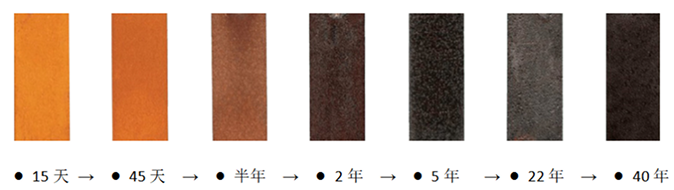

Comparison Chart: New Panel → Mid-Stage → Stable Patina

3.3 Mechanics of Honeycomb Structures

The bio-inspired hexagonal honeycomb structure forms a three-dimensional truss load-bearing system, where the face sheets withstand tension and compression while the core resists shear forces.

This configuration achieves maximum stiffness and flatness with minimal material usage.

At the same time, the enclosed honeycomb cells trap still air, imparting the panel with excellent thermal and acoustic insulation properties.

Corten Steel Weather-Resistant Honeycomb Panels: Materials and Grades

Selecting the appropriate materials is essential for ensuring long-term durability, corrosion resistance, and structural performance. Corten Steel Weather-Resistant Metal Honeycomb Panels are available in different grades and configurations to meet the requirements of various architectural and environmental conditions.

4.1 Face Sheet Material

The face sheet is manufactured from high-quality weathering steel, providing outstanding decorative performance, corrosion resistance, and long service life.

ASTM A242 (Corten A)

Decorative grade with a uniform rust patina, suitable for:

· Curtain walls

· Landscape architecture

· Artistic sculptures

· Exterior decorative applications

ASTM A588 (Corten B)

Structural grade with higher strength, suitable for:

· High-rise buildings

· Large-span structures

· Load-bearing members

· Heavy-duty architectural applications

Chinese National Standard Equivalents

· Q355NH

· 09CuPCrNi-A (GB/T 4171-2008)

4.2 Honeycomb Core Material

The honeycomb core provides the panel with exceptional strength while maintaining a lightweight structure.

Standard Configuration

3003 aviation-grade aluminum honeycomb

Suitable for most architectural curtain wall and decorative applications.

High Corrosion-Resistance Configuration

5052 aluminum honeycomb

Designed for:

· High-humidity environments

· Coastal regions

· Marine climates

· Corrosive atmospheric conditions

Cell Geometry

· Regular hexagonal cell structure

· Available cell sizes:

o 6 mm

o 8 mm

o 10 mm

4.3 Back Sheet Configuration

Different back sheet options are available to satisfy various structural and installation requirements.

Standard Configuration

Choose from:

· Aluminum alloy back sheet

· Hot-dip galvanized steel back sheet

These options provide:

· Structural balance

· Moisture resistance

· Corrosion protection

· Long-term stability

Premium Configuration

Double-sided Corten steel back sheet

Designed specifically for landscape and exposed architectural applications.

Features include:

· Visible weathering steel finish on both sides

· Enhanced architectural aesthetics

· Ideal for freestanding landscape structures and decorative installations

Material Configuration at a Glance

The combination of premium weathering steel, aerospace-grade aluminum honeycomb, and durable back sheet configurations enables Corten Steel Weather-Resistant Honeycomb Panels to achieve an optimal balance between aesthetics, structural performance, and long-term durability.

Application Scenarios – Nearly All Covered

Corten Steel Weather-Resistant Honeycomb Panels combine outstanding durability, lightweight construction, and distinctive architectural aesthetics, making them suitable for a wide range of commercial, public, and landscape applications.

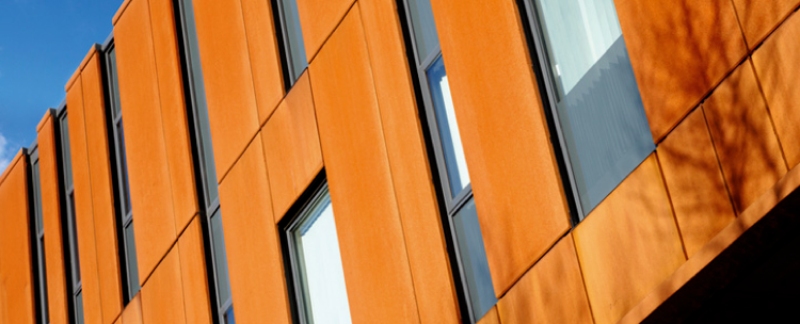

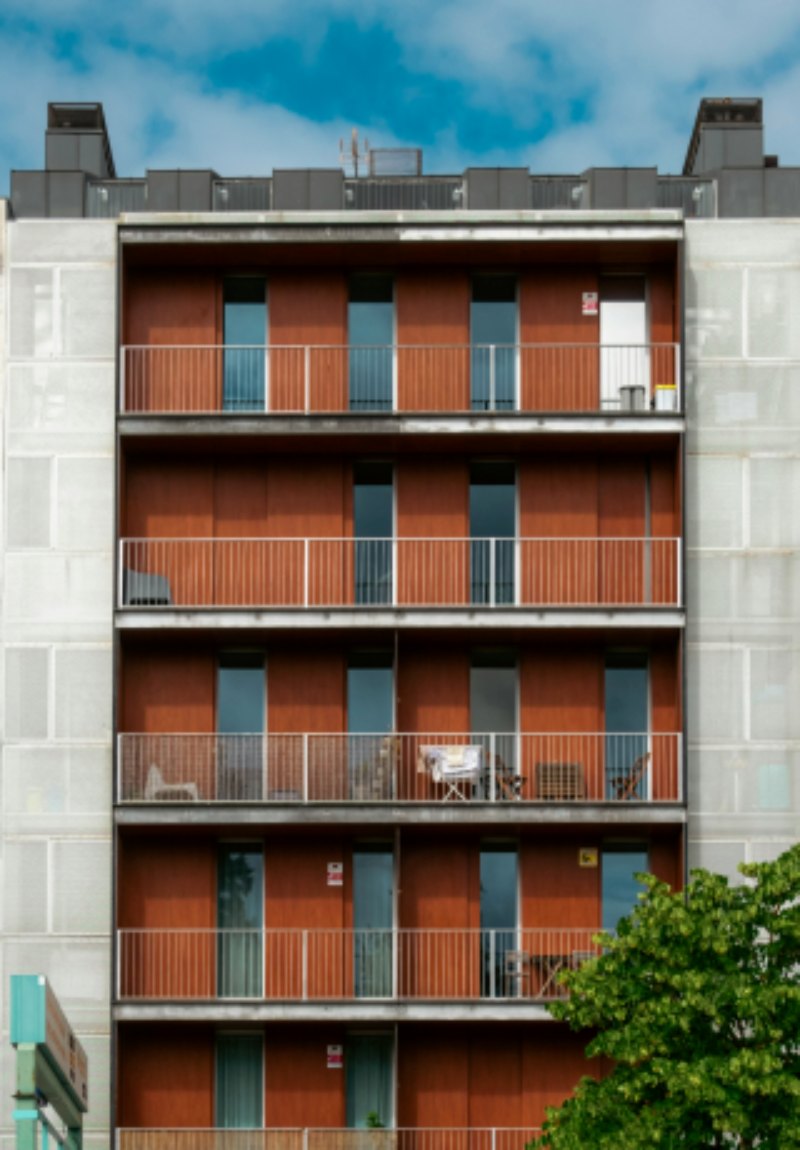

Building Facades

Ideal for modern architectural exteriors, including:

· Curtain walls

· Grilles

· Canopies

· Entrance canopies

The weathered finish creates a timeless architectural appearance while the lightweight honeycomb structure reduces the overall building load.

Industrial Renovation

An ideal material for adaptive reuse and industrial transformation projects, including:

· Cultural and creative parks

· Factory retrofitting

· Vintage-style projects

The natural rust patina preserves industrial character while delivering long-term durability with minimal maintenance.

Interior Commercial Fit-outs

Suitable for creating distinctive interior spaces, including:

· Feature walls

· Partitions

· Artistic sculptural elements

Its unique texture and evolving color add warmth and architectural depth to commercial interiors.

What We Can Do for You

WILLSTRONG provides complete material solutions for architectural curtain walls, landscape engineering, and renovation projects.

Our capabilities include:

· Dual-certified materials compliant with both GB and ASTM standards, with full quality traceability.

· Choice of naturally rusted or pre-weathered panels.

· Fully customisable fabrication, including:

· Bending

· Perforating

· Curved panels

· Special-shaped forms

Completed project case support for:

· Curtain wall applications

· Landscape engineering

· Building renovation projects

· One-on-one design development services and professional material selection guidance.

If You Are Working On...

Are you working on:

· Art museums

· Premium architectural facades

· Cultural and creative park renovations

· Cultural tourism projects

· High-end landscape architecture

Need a material that looks sophisticated, requires virtually no maintenance, lasts for decades, and delivers outstanding long-term value?

Feel free to contact us.

We can provide:

· Product brochures

· Project case galleries

· Material samples

· Professional technical consultation

· One-to-one material selection support

· Customized solutions tailored to your project

Contact WILLSTRONG

WILLSTRONG Architectural Materials

Email：info@willstrong360.com

Tel：+86 020 62663099

Website：www.willstrong360.com

Start Your Next Project with Confidence

Corten Steel Weather-Resistant Honeycomb Panels combine the timeless beauty of naturally weathered steel with the advanced performance of lightweight honeycomb technology.

Whether your project involves architectural facades, commercial interiors, industrial renovation, or landscape engineering, WILLSTRONG delivers customized solutions designed to meet the highest standards of aesthetics, durability, and sustainability.

Welcome to enquire — we offer bespoke solutions and real-world case galleries.
