Modern architecture is no longer satisfied with flat, single-tone facades. Designers increasingly seek materials that combine durability with dynamic visual appeal, and Chameleon Colors Aluminum Composite Panels (ACP) have become one of the most innovative solutions available. Thanks to advanced optical coating technology, these panels change color naturally as sunlight and viewing angles shift, creating iconic building exteriors without relying on lighting systems or digital displays.

For architects, contractors, and facade specialists looking for premium exterior cladding materials,WILLSTRONG® ACP provides high-performance aluminum composite panels engineered for long-term weather resistance, outstanding aesthetics, and reliable fabrication. Combining advanced fluorocarbon coating technology with decades of manufacturing expertise, WILLSTRONG® helps transform architectural concepts into visually striking and durable facades.

What Are Chameleon Colors Aluminum Composite Panels?

Chameleon Colors refer to a premium surface treatment applied to Aluminum Composite Panels (ACP). Unlike conventional painted panels, the coating produces a continuous color shift under different viewing angles and lighting conditions. A single panel may transition from gold to green, blue to purple, or red to gold, creating an ever-changing appearance throughout the day.

This optical effect is achieved through interference pearl pigments and a carefully engineered multilayer coating system rather than traditional color pigments alone.

Because of their outstanding decorative performance and weather resistance, Chameleon Colors are generally positioned as a high-end architectural coating solution. Most premium products are designed to meet AAMA 2605 performance requirements using PVDF or FEVE resin systems, making them suitable for demanding exterior environments.

Typical applications include:

· Landmark building facades

· Luxury commercial complexes

· Premium residential developments

· Airports and transportation hubs

· Hotels and cultural buildings

· Exhibition centers

· Vehicle interior decoration

For projects where appearance is as important as structural performance, Chameleon ACP offers a unique architectural advantage.

The Science Behind the Color-Changing Effect

The remarkable appearance of Chameleon Colors comes from thin-film optical interference.

When sunlight reaches the interference pigment, one portion of the light reflects from the outer surface of the metal oxide film, while another portion penetrates the film and reflects from the lower interface. Because these two reflected beams travel different optical distances, they interfere with one another.

The interference condition is expressed by:

2nd cosθ = mλ

Where:

· n = refractive index of the thin film

· d = film thickness

· θ = refraction angle

· m = interference order

· λ = reflected wavelength

As the viewing angle changes, different wavelengths become stronger while others weaken. The result is the characteristic "color travel" or Flop Effect, where the panel appears to change color naturally without any electronic assistance.

Advanced Interference Pearl Pigments Create Rich Color Depth

The quality of Chameleon ACP largely depends on the interference pigments used in the coating.

These pigments are produced by coating transparent substrates with precisely controlled titanium dioxide layers. Common substrate materials include:

· Natural mica

· Synthetic mica

· Alumina

· Silica

· Glass flakes

Among these options, alumina offers the highest refractive index and produces superior gloss, making it a preferred choice for premium architectural coatings.

Different TiO₂ coating thicknesses generate different reflected colors:

· 80–100 nm: Red

· 100–130 nm: Purple

· 130–160 nm: Blue

· 160–190 nm: Green

· 190–220 nm: Second-order gold

Experienced coating formulators often combine interference pigments with trace amounts of transparent absorption pigments, allowing the primary color to remain stable while creating dramatic color transitions across different viewing angles.

Multi-Layer Coating Structure Improves Performance

High-quality Chameleon ACP relies on a carefully designed multilayer coating structure.

A typical system includes:

· Aluminum coil (3003 or 5052 alloy)

· Anti-corrosion primer (15–25 μm)

· Chameleon color coat containing interference pearl pigments (20–35 μm)

· Transparent PVDF or FEVE clear coat (10–20 μm)

One of the most critical manufacturing requirements is pigment orientation.

During coating, the microscopic pearl flakes must align almost perfectly parallel to the panel surface. Poor orientation significantly reduces interference efficiency, resulting in cloudy colors, lower saturation, and a weaker angle-dependent color shift.

Manufacturers achieve proper orientation by carefully controlling resin shrinkage, solvent evaporation speed, coating shear force, and hot-air distribution inside the curing oven.

Top Benefits of Chameleon Colors ACP for Exterior Cladding

1. Outstanding Visual Impact

Perhaps the biggest advantage of Chameleon ACP is its dynamic appearance.

Unlike conventional metallic finishes that look nearly identical from every angle, Chameleon Colors continuously change as observers move around the building or as sunlight changes throughout the day.

This creates iconic architectural identities that attract attention while maintaining an elegant, sophisticated appearance.

2. Excellent Weather Resistance

Exterior cladding must withstand years of UV radiation, rain, humidity, and temperature fluctuations.

Premium Chameleon ACP typically uses PVDF (Polyvinylidene Difluoride) or FEVE (Fluoroethylene Vinyl Ether) resin systems, both recognized for exceptional outdoor durability.

Compared with standard PE coatings, these fluoropolymer coatings provide:

· Superior UV resistance

· Better gloss retention

· Long-lasting color stability

· Improved chemical resistance

· Excellent corrosion protection

Many systems comply with AAMA 2605, the industry benchmark for high-performance architectural coatings.

3. Lightweight Yet Structurally Efficient

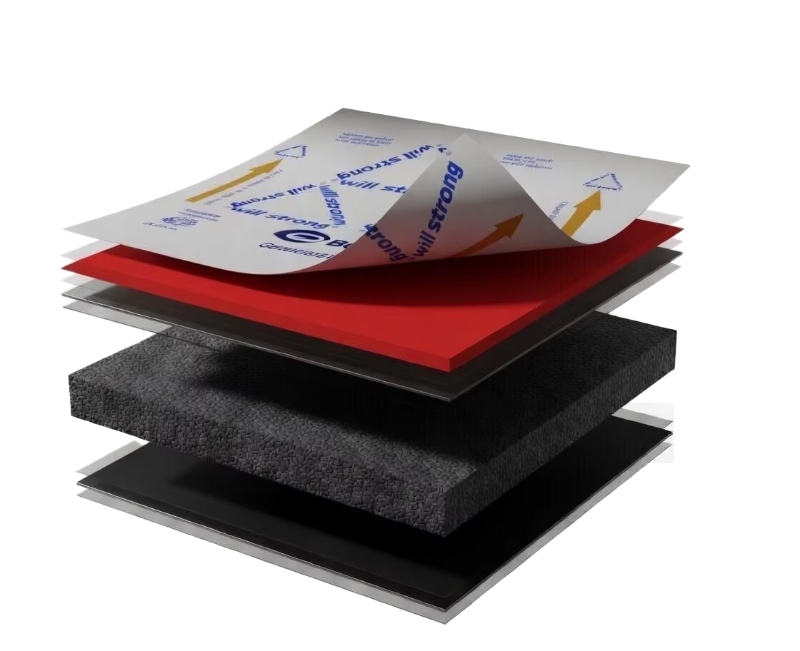

Like conventional aluminum composite panels, Chameleon ACP combines two aluminum skins with a lightweight core material.

This structure provides:

· Lower building dead load

· Easier transportation

· Faster installation

· Reduced structural requirements

· Excellent flatness over large panel sizes

These advantages make ACP a preferred material for both new construction and facade renovation projects.

4. High Design Flexibility

Modern architecture rarely relies on standard dimensions alone.

WILLSTRONG® ACP offers flexible specifications, including:

· Standard thickness: 4 mm

· Optional thickness: 3 mm

· Standard width: 1220 mm

· Optional width: 1500 mm

· Standard lengths: 2440 mm and 3200 mm

· Customized lengths up to 8000 mm

The material can also be cut, bent, folded, routed, and fabricated into complex facade geometries, giving designers considerable creative freedom.

5. Strong Mechanical and Coating Performance

Premium Chameleon coatings undergo extensive testing to ensure long-term durability.

Typical performance includes:

· Total dry film thickness of 40–60 μm

· Pencil hardness of HB or above

· ASTM D3359 Grade 0 adhesion

· Impact resistance exceeding ASTM D2794 requirements

· More than 100 MEK double rubs

· QUV accelerated weathering up to 4,000 hours

· Salt spray resistance up to 4,000 hours

These properties help ensure reliable performance even in demanding outdoor environments.

6. Excellent Color Consistency Through Quality Control

Maintaining consistent color across production batches is one of the industry's greatest challenges.

Professional manufacturers implement comprehensive quality control throughout production.

Incoming inspection verifies:

· Pigment morphology

· Particle size distribution

· Resin viscosity

· Aluminum coil quality

During production, operators continuously monitor:

· Wet film thickness

· Coating viscosity

· Color values

· Peak Metal Temperature (PMT)

· MEK curing performance

Finished panels are evaluated using multi-angle spectrophotometers at 15°, 25°, 45°, 75°, and 110°, ensuring accurate measurement of color travel and Flop Index.

Premium products generally achieve:

· Delta E ≤ 0.5 within batches

· Flop Index ≥15

· Stable color travel above 30°

7. Long-Term Value for Landmark Projects

Because of their unique appearance and excellent durability, Chameleon Colors are widely used in projects where architectural identity matters.

Applications include:

· Commercial headquarters

· Cultural buildings

· Airports

· Museums

· Luxury shopping centers

· Exhibition halls

· Premium residential towers

Their continuously changing appearance helps create memorable buildings that stand out throughout different times of the day.

Manufacturing Expertise Makes the Difference

Producing Chameleon ACP is considerably more demanding than manufacturing standard coated panels.

For example:

· Interference pigments cannot be processed using sand mills or three-roll mills because excessive grinding permanently destroys the optical flakes.

· Solvent evaporation must be carefully balanced to provide enough time for pigment orientation.

· Peak Metal Temperature generally needs to remain between 224°C and 241°C for complete curing.

· Multi-zone curing ovens gradually reduce airflow to optimize pigment alignment.

Even minor variations in pigment batches may require formulation adjustments to maintain consistent color performance.

These manufacturing details explain why high-quality Chameleon ACP requires advanced coating technology and experienced production control.

Why Choose WILLSTRONG® ACP?

Established in 1995, WILLSTRONG® has become one of China's leading facade solution providers and one of the country's TOP 100 facade solutions companies.

Its product portfolio includes:

· Aluminum Composite Panels

· Fire-resistant composite panels

· Aluminum honeycomb systems

WILLSTRONG® products have been installed in numerous international projects, including Charles de Gaulle International Airport, demonstrating outstanding quality and reliability.

Beyond premium Chameleon Colors, the company also offers advanced fluorocarbon coatings, antibacterial and antistatic surfaces, nano self-cleaning technology, and fire-resistant solutions for modern architectural applications.

With decades of manufacturing experience and continuous innovation, WILLSTRONG® provides architects and facade contractors with dependable ACP systems that balance aesthetics, durability, and fabrication flexibility.

Conclusion

Chameleon Colors Aluminum Composite Panels combine advanced optical science with high-performance architectural coatings to deliver exterior cladding that is both visually impressive and technically reliable. Through interference pearl pigments, multilayer coating structures, PVDF or FEVE resin systems, and precision-controlled manufacturing processes, these panels achieve dramatic color shifts while maintaining excellent weather resistance and mechanical performance.

For architects seeking distinctive building envelopes that remain beautiful for years, Chameleon ACP represents one of the most advanced decorative facade materials available today. Backed by decades of facade expertise and globally recognized projects, WILLSTRONG® ACP offers premium aluminum composite panel solutions designed to meet the evolving demands of contemporary architecture.
