IndiaWILLSTRONG® ACP
Aluminum Composite Panel
Aluminium Composite Panels (ACP) consist of two high-quality aluminium sheets bonded to a mineral core, delivering exceptional lightness, rigidity, and versatility, along with superior flatness, durability, weather resistance, and long-lasting color retention thanks to PVDF coatings.
Perfectly suited for ventilated façades, interiors, and creative cladding, ACP offers effortless fabrication, sustainability, and low-maintenance value, making it a preferred choice for modern architectural projects.
Premium A2 ACM features a high-performance mineral-filled core achieving EN 13501-1 Class A2-s1, d0 fire rating.
Lightweight, rigid, and easy to fabricate, it delivers superior safety and design freedom for high-rise façades and demanding architectural projects.
Our B1 ACM features a high-quality mineral-filled fire-retardant core, achieving EN 13501-1 Class B-s1, d0.
It offers excellent rigidity, flatness, and easy fabrication while providing enhanced fire safety for ventilated façades and commercial architecture.
Our classic PE-core ACM panels deliver outstanding value with excellent flatness, lightweight rigidity, and superior workability.
Available in a wide range of colours and finishes, they are ideal for signage and shopfronts applications.
Panel Thickness: 2.5mm, 3mm, 4mm, 5mm, 6mm
Metal Sheet Thickness | 0.1-1.0mm | ||
Width | 1220mm | 1250mm | 1500mm |
Length | 1000-6000mm | ||
Standard Solid | √ | √ | √ |
Metallic | √ | √ | √ |
Woodgrain | √ | √ | √ |
Natural Stone | √ | √ | √ |
Chameleon | √ | √ | √ |
Nano Coating | √ | √ | √ |
Anodized | √ | √ | √ |
Design | √ | √ | √ |
Special Finishes | √ | √ | √ |
* Custom dimensions are available upon request.
EU | EN13501-1 | A2-s1, d0 |
EU | EN13501-1 | B-s1, d0 |
Germany | DIN4102-7 | Passed |
Sigapore | BS476-Part 6 | Fire propagation index=1.0 |
Sigapore | BS476-Part 7 | Class 0 |
USA | NFPA285 | Passed |
USA | ASTM E84-15a | Flame Spread Index 5, Smoke Developed Index 0; |
China | GB 8624-2012 | A2-s1, d0 |
China | GB 8624-2012 | B-s1, d0 |
Russia | GOST31251 | Passed |
| THICKNESS | STANDARDS | UNIT | 3mm | 4mm | |||
|---|---|---|---|---|---|---|---|
| Fire-B1,S1,d0 | Fire-A2,S1,d0 | Fire-B1,S1,d0 | Fire-A2,S1,d0 | ||||
| Thickness of Aluminum Layers | mm | 0.21 | 0.21 | 0.5 | 0.5 | ||
| Weight | kg/m² | 4.85 | 5.5 | 7 | 7.8 | ||
| Width | mm | 1220/1250/1500 | 1220/1250/1500 | ||||
| TECHNICAL PROPERTIES | |||||||
| Section modulus | W | cm³/m | 0.55 | 0.55 | 1.75 | 1.75 | |
| Rigidity | EJ | KNcm²/m | 1110 | 1110 | 2370 | 2370 | |
| Alloy/Temper of Aluninum Layers | 3003H26 | 3003H26 | 3003H26 | 3003H26 | |||
| Modulus of Elasticity | N/mm² | 70000 | 70000 | ||||
| Tensile Strength of Aluminum | N/mm² | ≥130 | ≥130 | ||||
| 0.2%Proof Stress | N/mm² | ≥90 | ≥90 | ||||
| Elongation | % | ≥5 | ≥5 | ||||
| Linear Thermal Expansion | 2.4mm/m at 100°c temperature | 2.4mm/m at 100°c temperature | |||||
| CORE | Mineral filled polymer | Mineral filled polymer | |||||
| SURFACE | |||||||
| Lacquering | Coil Coating Polyester（PET） | Coil Coating Fluorocarbon(PVDF) | |||||
| Film Thickness | µm | ≥18 | ≥25 | ||||
| Gloss(initial value) | 30-90 | 30-80 | |||||
| Pencil Hardness | H-2H | H | |||||
| ACOUSTICAL PROPERTIES | |||||||
| Sound Absorption Factor | 0.05 | ||||||
| Sound Transmission Loss | db | ≥25 | |||||
| THERMAL PROPERTIES | |||||||
| Thermal Resistance | R | m²k/w | 0.07 | 0.09 | |||
| Thermal conductivity | w/mk | 0.49 | 0.44 | ||||
| Heat transition coefficient | U | w/m²k | 5.68 | 5.58 | |||
| Temperature Resistance | °c | -10 | 40 | -50 | 80 | ||
Item | Standard | Unit | Testresult |
|---|---|---|---|
Surface/bottom panel | mm | 0.5 | |
Physical Performance | |||
Bending strength | ≥100 | MPa | 149 |
Bending elastic strength modulus | ≥2.0×10⁴ | MPa | 3.3×10⁴ |
Penetration resistance | ≥7.0 | kN | 9.5 |
Shearing strength | ≥22.0 | MPa | 69.7 |
Peel strength | Average value≥4.0Min Value≥3.0 | N/mm | Average Value 7.1Min Value 6.3 |
Coating properties | |||
Coating thickness | Average Value≥25 (Two Coating) Average Value≥33 (Three Coating) | µm | Average value 29 (Two Coating) Average value 38 (Three Coating) |
Hot water resistance | No visible change | -- | No visible change |
Stain resistance | ≤5% | -- | 3.20% |
Acid resistance | No bubble, no bulge, no chalkingΔE≤5 | -- | No bubble, no bulge, no chalkingΔE=1.13 |
Alkali resistance | No bubble, no bulge, no chalkingΔE≤2 | -- | No bubble, no bulge, no chalkingΔE≤0.65 |
Oil resistance | No change | -- | No change |
Solvent resistance | Substrate Invisible | -- | Substrate Invisible |
Project Showcase

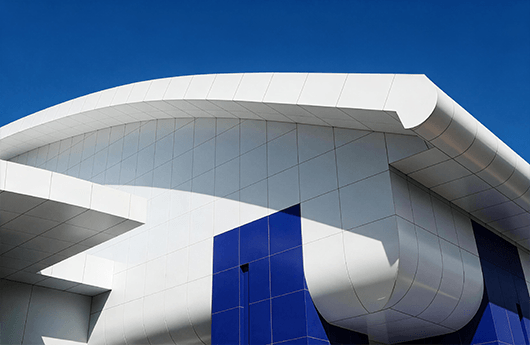

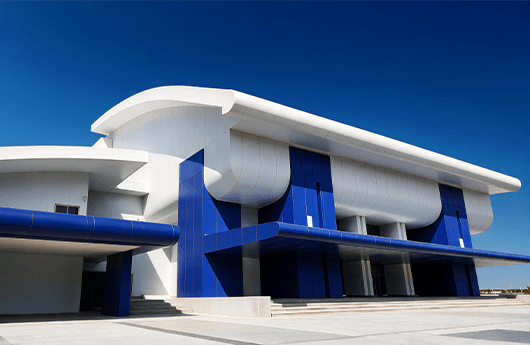

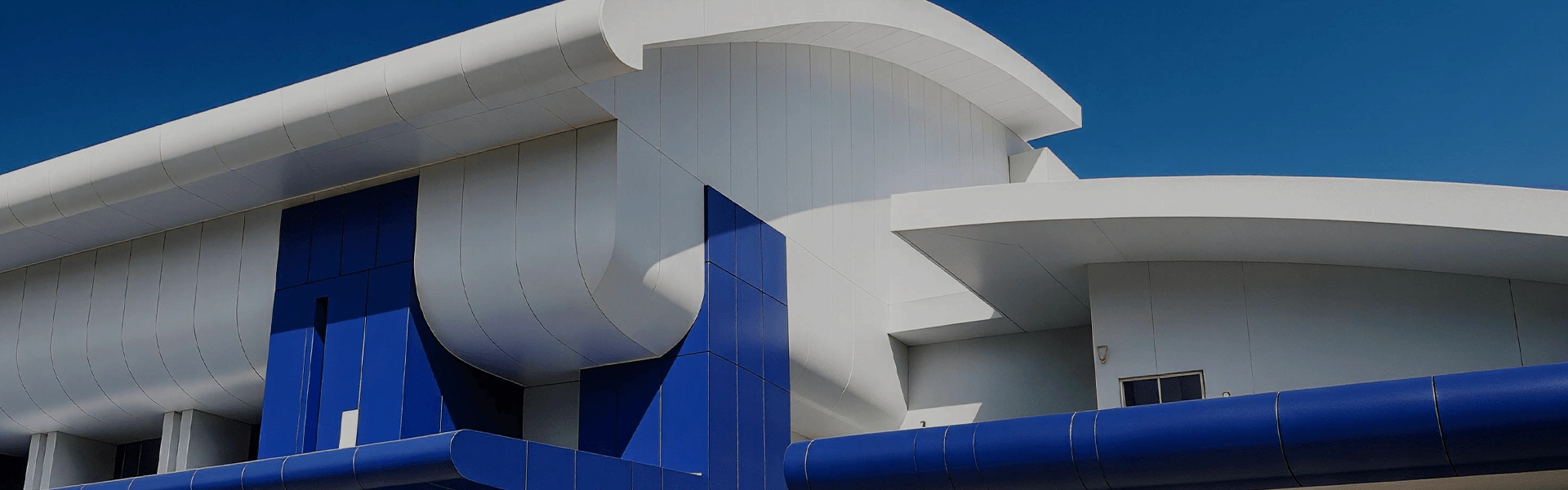

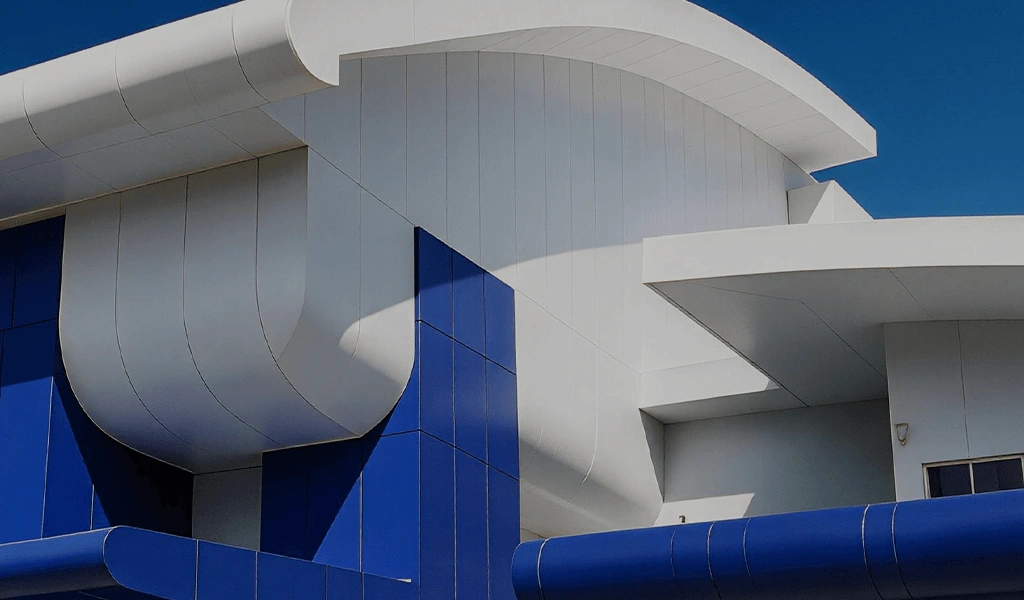

WILLSTRONG supplied 8,500 m² of 5110/5308 blue/white Aluminum Composite Panels for the USTP Gymnasium curtain wall in 2013. The panels deliver lightweight rigidity, flatness, and weather resistance, transforming the building into a vibrant campus landmark. Custom colour matching and a wide finish range ensure tailored solutions for every architectural vision.
Beyond flat surfaces, our ACM panels are expertly applied to edges, roofs, and window surrounds.
Thanks to our advanced deep processing, we achieve a sleek and seamless visual effect across the entire building.

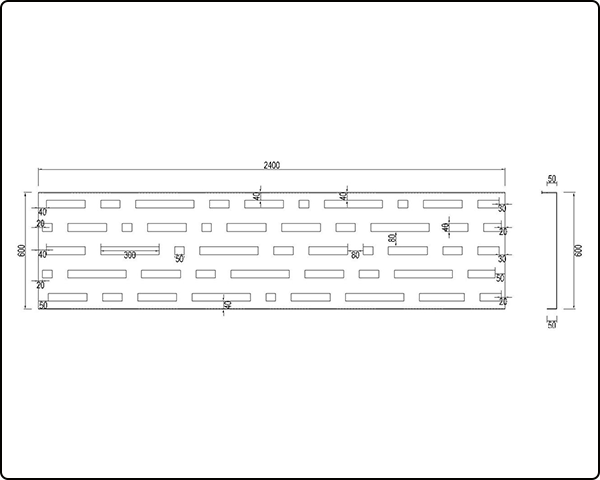

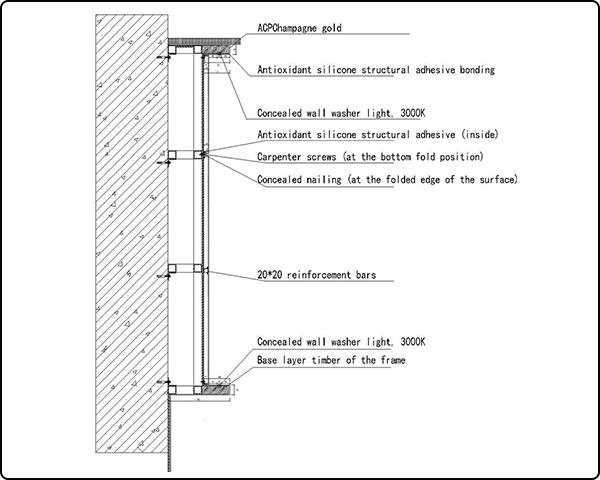

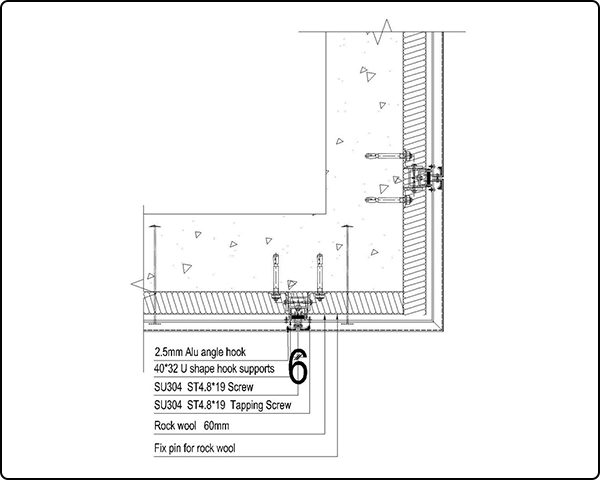

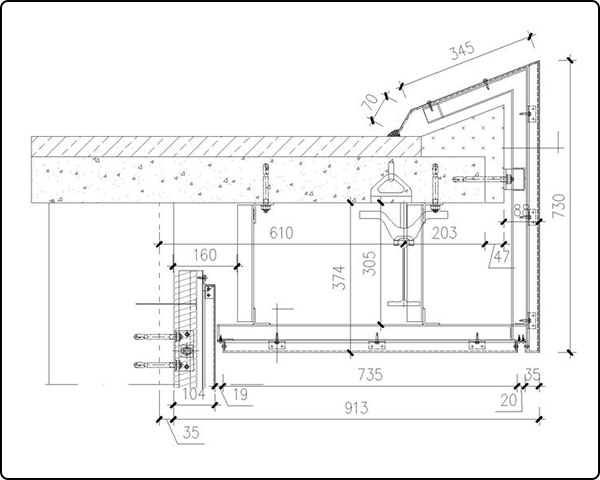

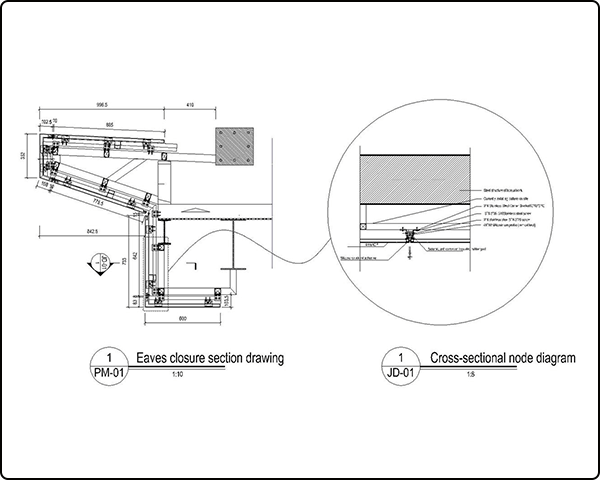

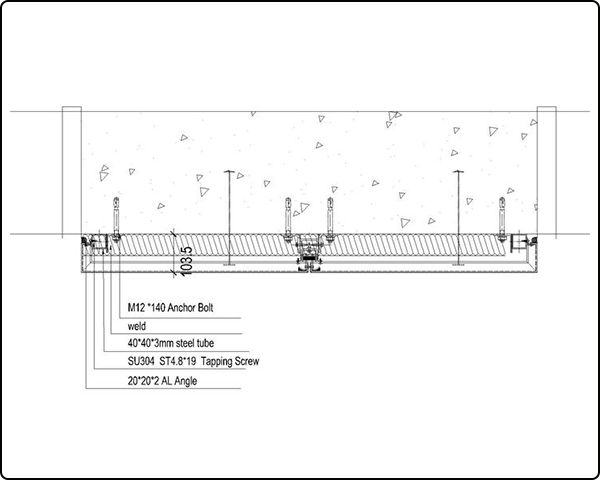

Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.

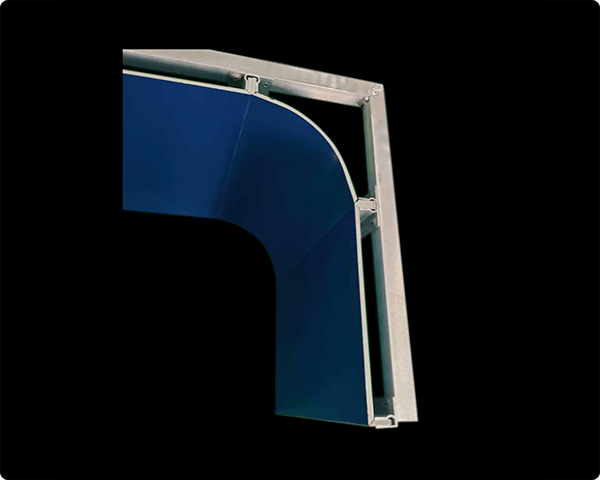

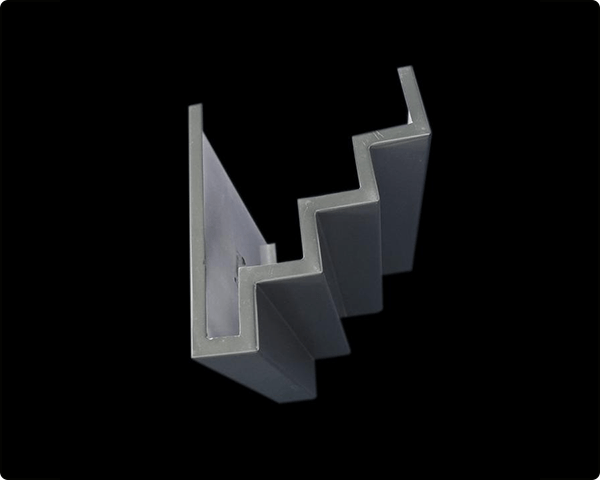

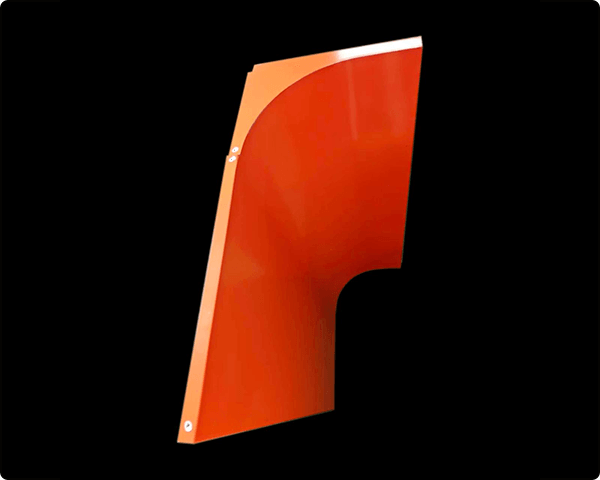

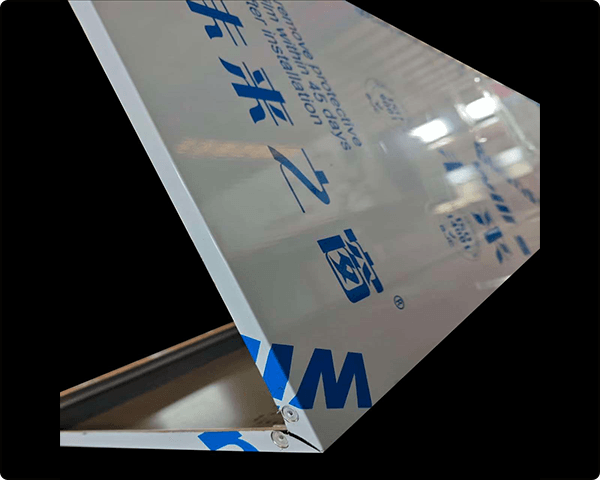

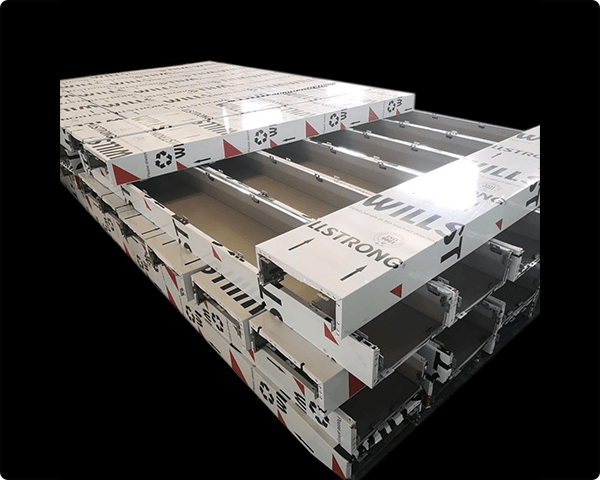

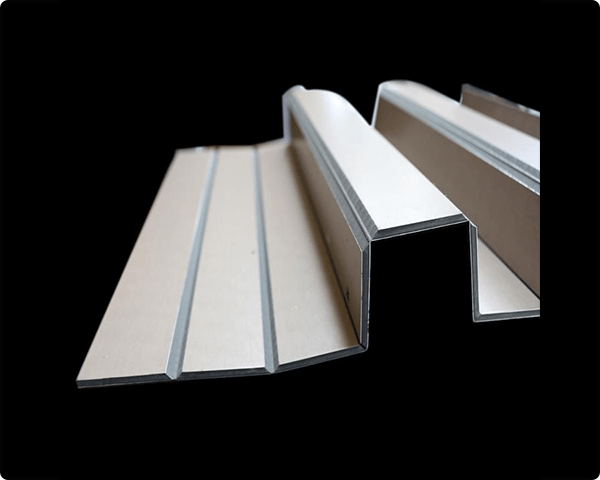

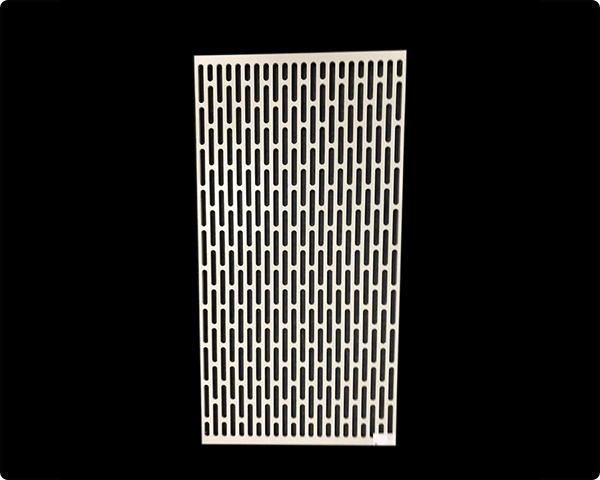

The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.

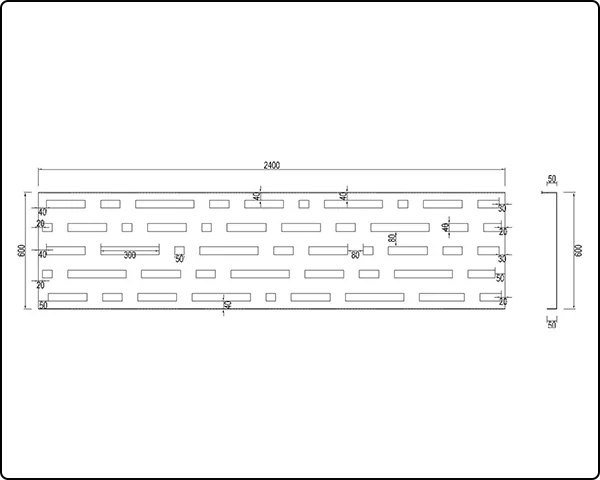

Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
At WILLSTRONG, we offer an extensive range of colours, shines, and textures. Our colorimetry laboratory can precisely match any RAL, PANTONE, or NCS colour, and produce fully customised finishes from a physical sample.
Discover how our finishing collections elevate your projects to a new level of excellence and distinction.
Its unique and classical finish is highly favoured for museums and libraries.
Just like Titanium-zinc, its unique texture provides great possibilities for architects.
Its rich warm tones and natural patina create a timeless finish that ages beautifully.
