IndiaWILLSTRONG® SSHP
Stainless Steel Honeycomb Panel
WILLSTRONG® Stainless Steel Honeycomb Panel (SSHP) combines corrosion-resistant stainless steel skins with an aluminum honeycomb core, providing exceptional rigidity and minimal weight.
Outperforming ACP in strength and stiffness, SSHP enables graceful curves, effective insulation, and large‑scale, durable, aesthetically appealing designs.
The hexagonal aluminum core, bonded between stainless steel and alloy backing, ensures outstanding flatness and impact resistance, eliminating oil-canning on expansive façades.
With A2 fire-rated safety and excellent dimensional stability, SSHP delivers reliable, long-lasting performance for modern architectural projects.
Thickness: 10mm, 15mm, 20mm, 25mm, 30mm, 50mm, 100mm
Metal Sheet Thickness | 0.5-1.2mm | ||
Width | 1220mm | 1250mm | 1500mm |
Length | 2440-10000mm | ||

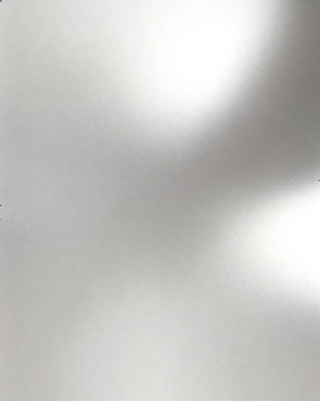

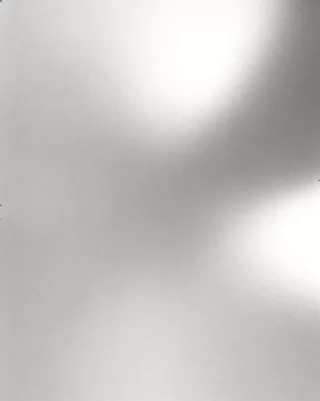

8K Mirror Series | √ | √ | √ |

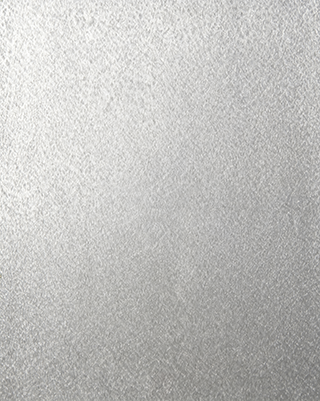

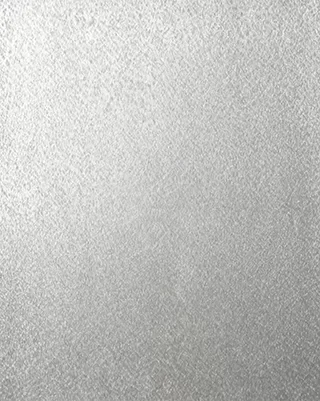

8K Sandblasted Series | √ | √ | √ |

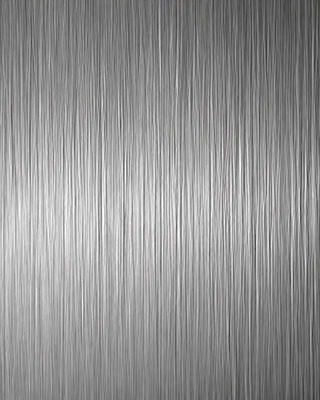

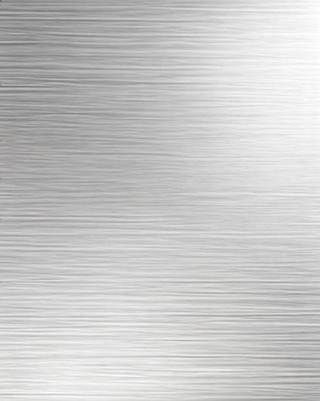

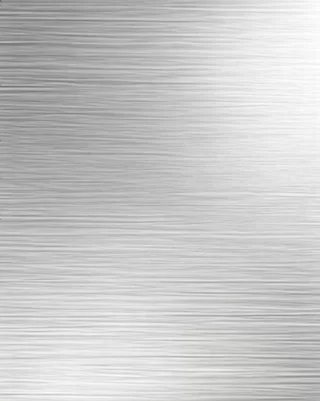

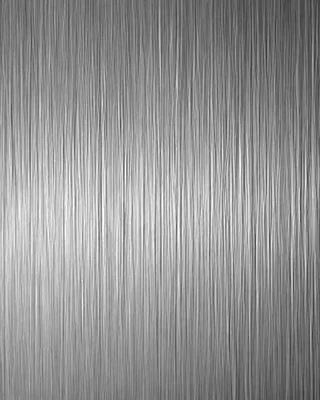

Bright Brushed Series | √ | √ | √ |
Satin Brushed Series | √ | √ | √ |
Antique Series | / | / | / |
Satin Finish Series | √ | √ | √ |
Coarse Grain Series | √ | √ | √ |
Vibration Finish Series | √ | √ | √ |

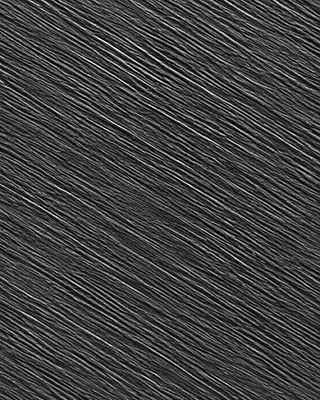

Hand-Brushed Series | √ | √ | √ |
Design | √ | √ | √ |
Special Finishes | √ | √ | √ |
Remark: Custom dimensions are available upon request
| THICKNESS | STANDARDS | UNIT | 10 | 12 | 20 | 25 | |
|---|---|---|---|---|---|---|---|
| Fire | FR-A2,S1,d0 | FR-A2,S1,d0 | FR-A2,S1,d0 | FR-A2,S1,d0 | |||
| Thickness of Stainless Steel Layers | mm | 0.7/0.5 | 0.7/0.5 | 1 | 1 | ||
| Weight | kg/m² | 10.8 | 10.9 | 17.3 | 17.5 | ||
| Width | mm | 1200/1500 | 1200/1500 | 1200/1500 | 1200/1500 | ||
| TECHNICAL PROPERTIES | |||||||
| Section modulus | W | cm³/m | 5 | 6.5 | 18.1 | 23.1 | |
| Rigidity | EJ | KNcm²/m | 47000 | 98000 | 396800 | 633000 | |
| Alloy/Temper of Stainless Stell Layers | 304 | 304 | 304 | 304 | |||
| Modulus of Elasticity | N/mm² | 200000 | 200000 | 200000 | 200000 | ||
| Tensile Strength of Aluminum | N/mm² | ≥520 | ≥520 | ≥520 | ≥520 | ||
| 0.2%Proof Stress | N/mm² | ≥205 | ≥206 | ≥207 | ≥208 | ||
| Elongation | % | ≥7 | ≥7 | ≥7 | ≥7 | ||
| Linear Thermal Expansion | 1.7mm/m at 100°C temperature | 1.7mm/m at 100°C temperature | 1.7mm/m at 100°C temperature | 1.7mm/m at 100°C temperature | |||
| CORE | Aluminum Honeycomb | Aluminum Honeycomb | Aluminum Honeycomb | Aluminum Honeycomb | |||
| SURFACE | |||||||
| Lacquering | Galvanized | Galvanized | Galvanized | Galvanized | |||
| Film Thickness | µm | ≥5 | ≥5 | ≥5 | ≥5 | ||
| Gloss(initial value) | 20-90 | 20-90 | 20-90 | 20-90 | |||
| Hardness | ≤92HRB | ≤92HRB | ≤92HRB | ≤92HRB | |||
| ACOUSTICAL PROPERTIES | |||||||
| Sound Absorption Factor | 0.05-0.07 | 0.05-0.07 | |||||
| Sound Transmission Loss | db | 21-25 | 21-25 | ||||
| THERMAL PROPERTIES | |||||||
| Thermal Resistance | R | m²k/w | 0.07 | 0.07 | 0.09 | 0.09 | |
| Thermal conductivity | w/mk | 1.63 | 1.63 | 1.63 | 1.63 | ||
| Heat transition coefficient | U | w/m²k | 5.68 | 5.68 | 5.58 | 5.58 | |
| Temperature Resistance | °C | -10 | 40 | -50 | 80 |
EU | EN13501-1 | A2-s1, d0 |
EU | EN13501-1 | B-s1, d0 |
Germany | DIN4102-7 | Passed |
Sigapore | BS476-Part 6 | Fire propagation index=1.0 |
Sigapore | BS476-Part 7 | Class 0 |
USA | NFPA285 | Passed |
USA | ASTM E84-15a | Flame Spread Index 5, Smoke Developed Index 0; |
China | GB 8624-2012 | A2-s1, d0 |
China | GB 8624-2012 | B-s1, d0 |
Russia | GOST31251 | Passed |
Color difference (ΔE) | Within same batch: ≤ 2.0; Between different batches of same color code: ≤ 3.0 | |
Impact resistance | ≥50kg.cm | |
Pencil hardness | ≥2H | |
Adhesion | Class 0 (cross-cut intact, no coating detachment) | |
Gloss deviation | Gloss < 10 | ±5 |
20 ≤ Gloss < 40 | ±7 | |
Gloss ≥ 80 | ±8 | |
Resistance to hydrochloric acid | No change (5% HCl solution) | |
Resistance to nitric acid | No blistering or other changes; ΔE ≤ 5.0 | |
Solvent resistance | PVD and PVDF: no substrate exposure, no blushing, no dissolution | |
Mortar resistance | No change | |
Abrasion resistance | ≥5L/ μm | |
Salt spray resistance | Class 1 or better | |
Resistance to accelerated weathering | Color difference ΔE ≤ 3.0; Chalking class 0; no cracking or peeling | |
Damp heat resistance | No blistering of coating / plated layer; No delamination of honeycomb adhesive bond; No rust spots on stainless steel substrate | |
Boiling water resistance | PVD titanium coating and PVDF coating: no blushing, blistering, or delamination | |

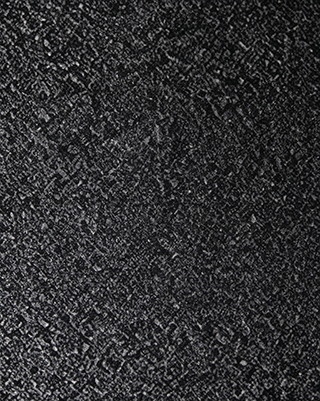

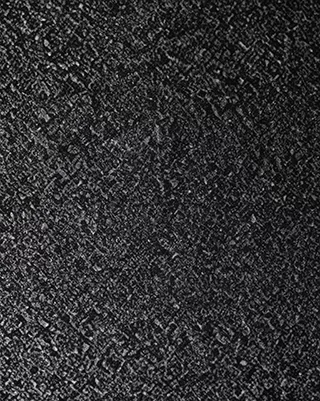

The ultra-lightweight stone honeycomb system perfectly merges the timeless elegance of natural stone with the precision contemporary facade.
This advanced combination creates a sophisticated dialogue between natural materiality and bold modern design.

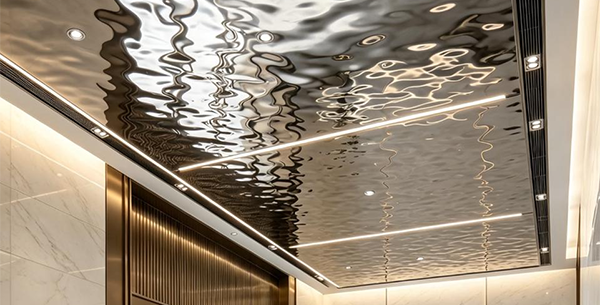

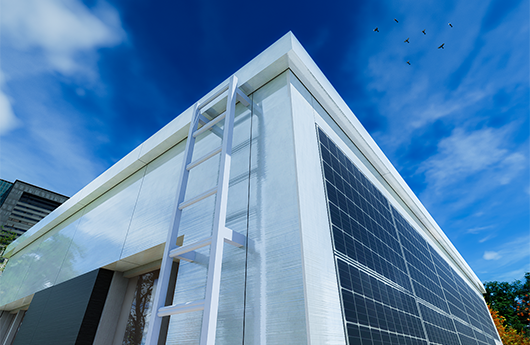

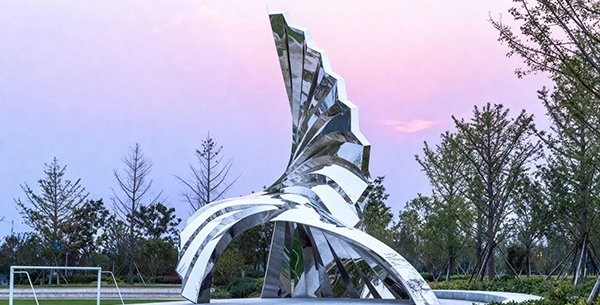

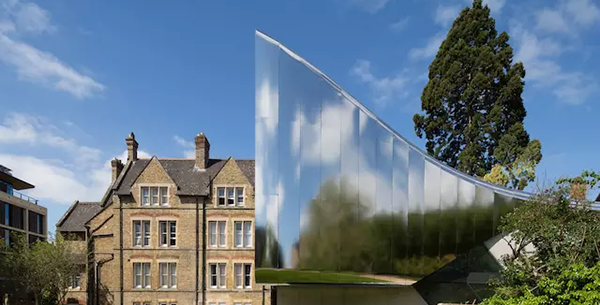

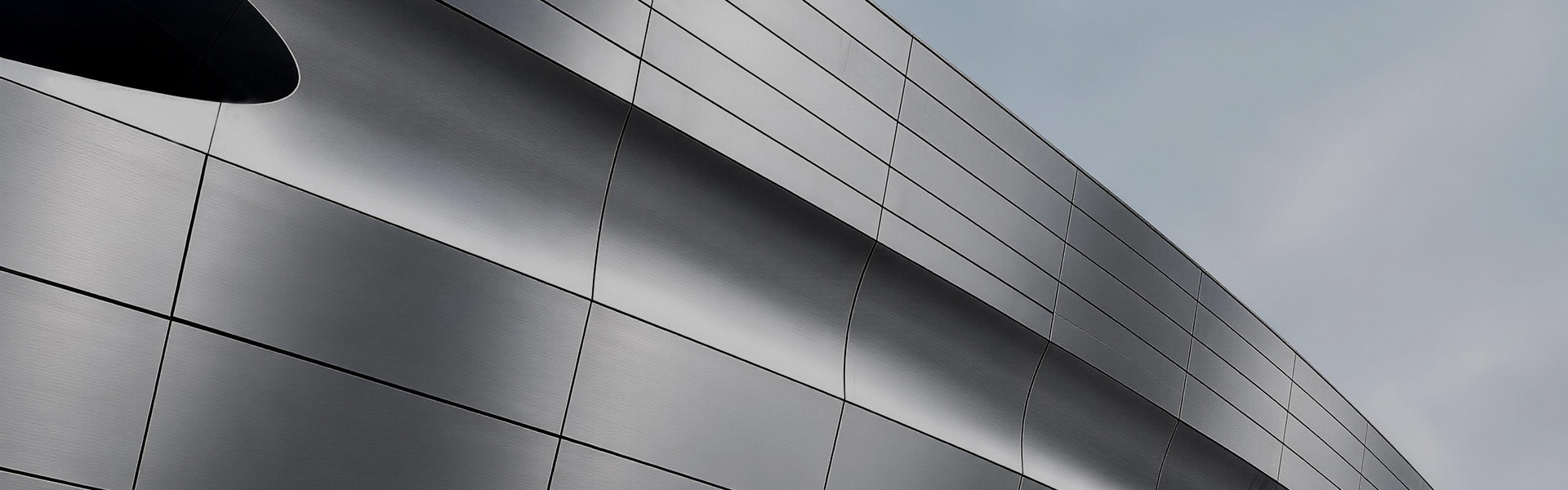

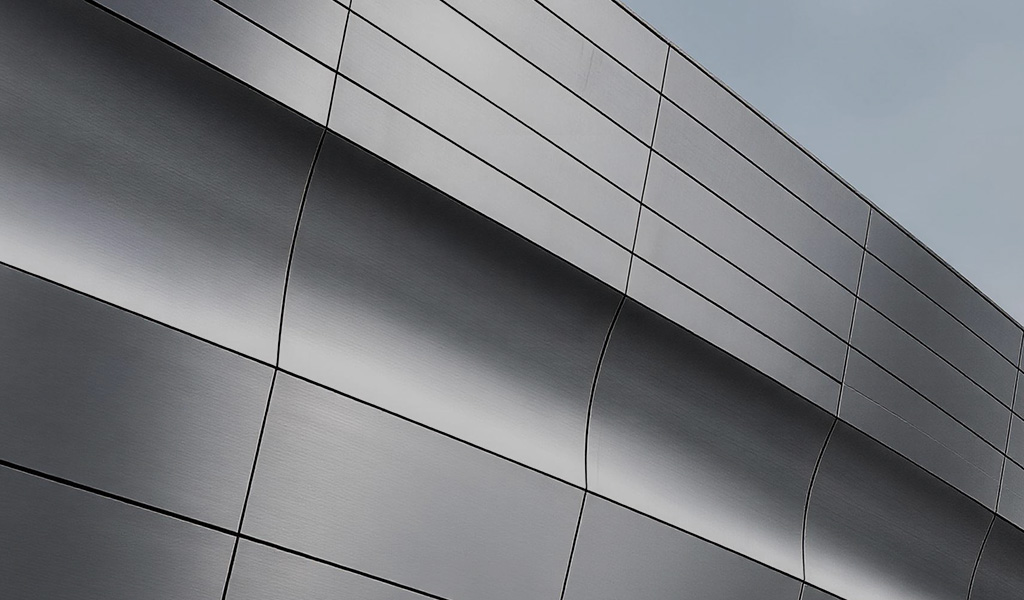

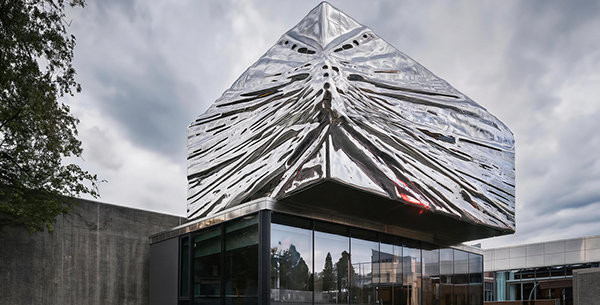

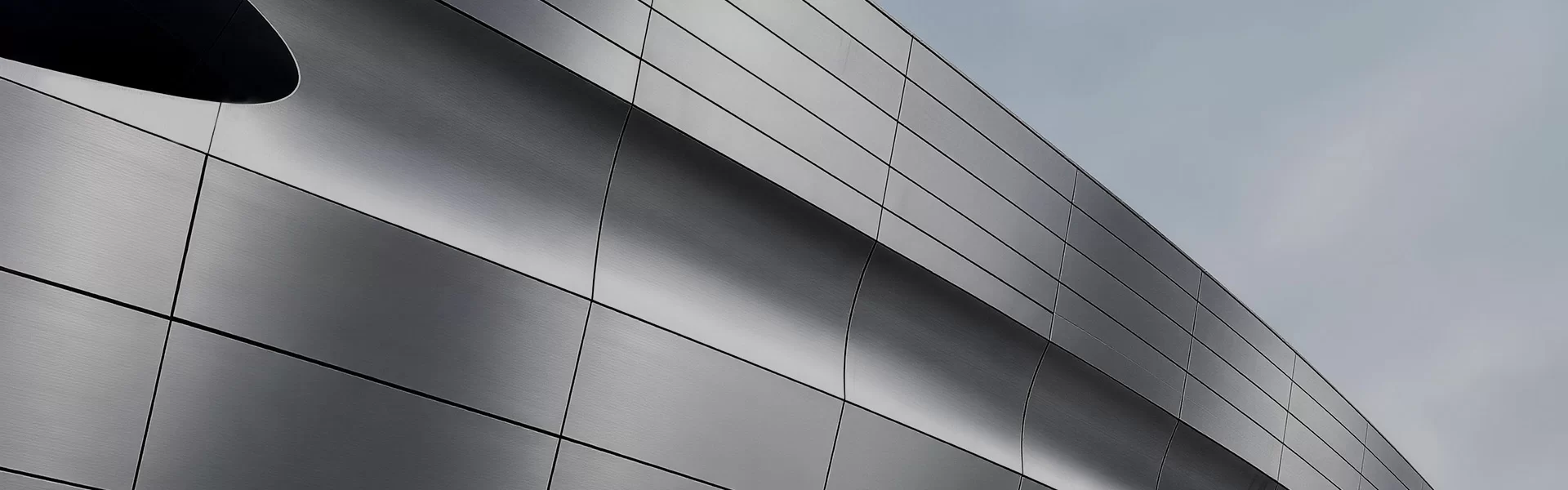

Stainless steel honeycomb panels are an ideal solution for sculptures, roofs, ceilings, and facades.
With a corrosion-resistant surface and rigid honeycomb core, they provide exceptional flatness, durability, and a sleek modern look.
Its unique and classical finish is highly favoured for museums and libraries.
Just like Titanium-zinc, its unique texture provides great possibilities for architects.
