IndiaWILLSTRONG® SCP
Steel Composite Panel

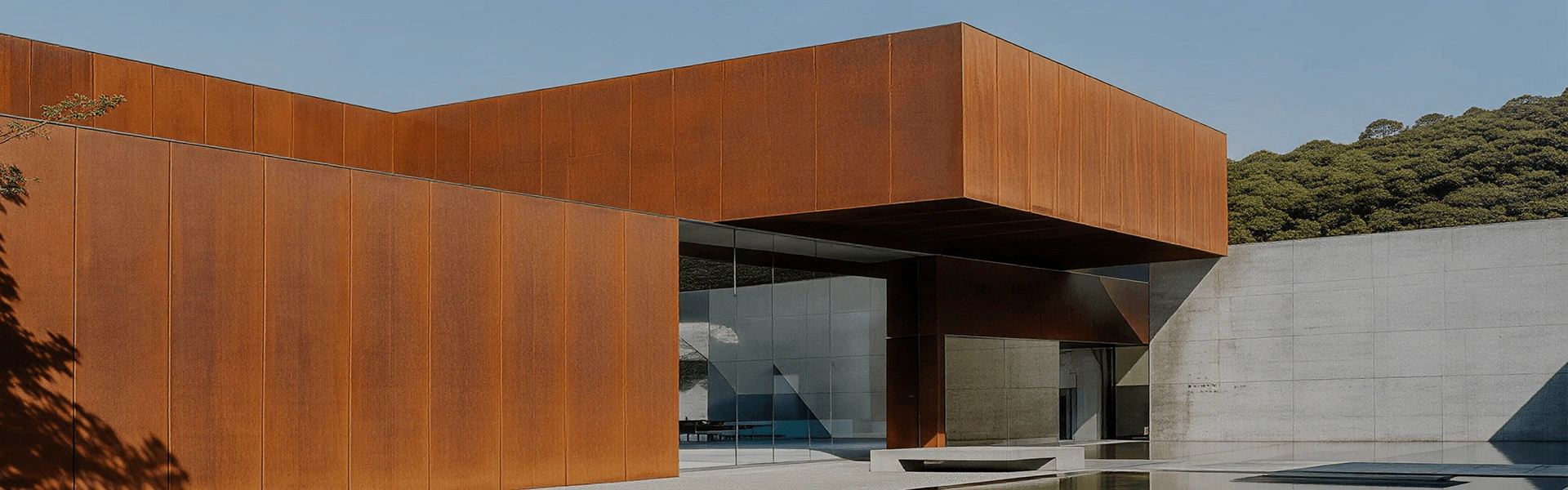

WILLSTRONG® Steel Composite Panel (SCP) combines the high structural strength and unique visual texture of steel (including Corten/Weathering Steel and Stainless Steel) with a high-performance mineral core. It overcomes the heavy weight and oil-canning issues of traditional sheet metal, offering extraordinary flatness and superior impact resistance.
Designed for modern architectural façades, industrial-style interiors, and high-load structural cladding, SCP delivers an authentic metallic aesthetic with exceptional structural integrity.
Premium Steel Composite Panel features a high-rigidity steel surface combined with a high-performance mineral core.
Its sandwich structure provides superior flexural strength and impact resistance over aluminum, weighs less than solid steel, and resists distortion on long-span façades.
Steel composite panel has steel facings and a B1 flame-retardant high-performance mineral core with effective new fire suppressant additive compounds.
This construction provides excellent high load-bearing capacity, superior overall acoustic performance, and B1 flame retardancy with very low smoke emissions.
Steel composite panel is formed with durable steel layers and a lightweight polyethylene core that offers very easy overall handling.
It offers high rigidity, excellent impact resistance, overall cost efficiency, and a durable low-maintenance solution for various building construction projects.
Panel Thickness: 2.5mm, 3mm, 4mm, 5mm, 6mm
Metal Sheet Thickness | 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.8mm / 1.0mm | ||
Width | 1220mm | 1250mm | 1500mm |
Length | 1000-6000mm | ||
Natural Copper Series | √ | √ | √ |
Brass Series | √ | √ | √ |
Antique Series | √ | √ | √ |

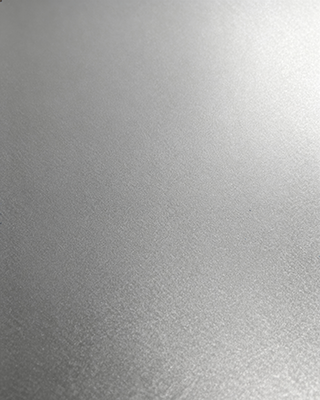

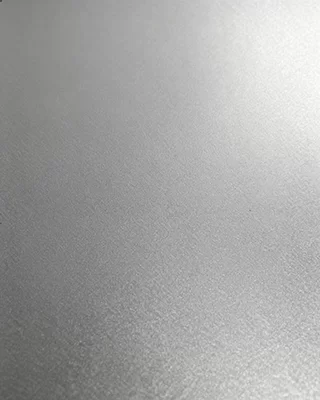

Titanium Coating | √ | √ | √ |

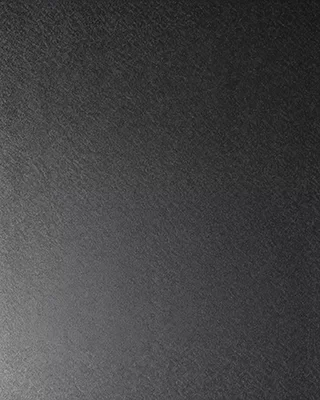

Textured Series | √ | √ | √ |

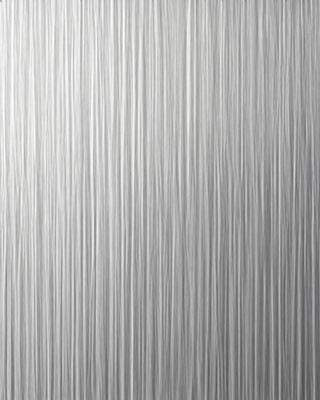

Brushed Series | √ | √ | √ |
Mirror Series | √ | √ | √ |
Design | √ | √ | √ |
Special Finishes | √ | √ | √ |
Remark: Custom dimensions are available upon request
EU | EN13501-1 | A2-s1, d0 |
EU | EN13501-1 | B-s1, d0 |
Germany | DIN4102-7 | Passed |
Sigapore | BS476-Part 6 | Fire propagation index=1.0 |
Sigapore | BS476-Part 7 | Class 0 |
USA | NFPA285 | Passed |
USA | ASTM E84-15a | Flame Spread Index 5, Smoke Developed Index 0 |
China | GB 8624-2012 | A2-s1, d0 |
China | GB 8624-2012 | B-s1, d0 |
Russia | GOST31251 | Passed |
| THICKNESS | STANDARDS | UNIT | 4 | 4 | |
|---|---|---|---|---|---|
| Fire | FR-B,S1,d0 | FR-A2,S1,d0 | |||
| Thickness of Stainless Steel Layers | mm | 0.3 | 0.3 | ||
| Weight | kg/m² | 9.5 | 10.3 | ||
| Width | mm | 1220/1250 | 1220/1250 | ||
| TECHNICAL PROPERTIES | |||||
| Section modulus | W | cm³/m | 1.5 | 1.5 | |
| Rigidity | EJ | KNcm²/m | 4500 | 4500 | |
| Alloy/Temper of Stainless Stell Layers | SU304 | SU304 | |||
| Modulus of Elasticity | N/mm² | 200000 | 200000 | ||
| Tensile Strength of Aluminum | N/mm² | ≥520 | ≥520 | ||
| 0.2%Proof Stress | N/mm² | ≥205 | ≥205 | ||
| Elongation | % | ≥40 | ≥40 | ||
| Linear Thermal Expansion | 1.7mm/m at 100°c temperature | 1.7mm/m at 100°c temperature | |||
| CORE | Mineral filled polymer | Mineral filled polymer | |||
| SURFACE | |||||
| Lacquering | Galvanized | Galvanized | |||
| Film Thickness | µm | ≥5 | ≥5 | ||
| Gloss(initial value) | 20-90 | 20-90 | |||
| Hardness | ≤92HRB | ≤92HRB | |||
| ACOUSTICAL PROPERTIES | |||||
| Sound Absorption Factor | 0.05 | 0.05 | |||
| Sound Transmission Loss | db | ≥25 | ≥25 | ||
| THERMAL PROPERTIES | |||||
| Thermal Resistance | R | m²k/w | 0.07 | 0.07 | |
| Thermal conductivity | w/mk | 1.63 | 1.63 | ||
| Heat transition coefficient | U | w/m²k | 5 | 5 | |
| Temperature Resistance | °c | -50 | 80 |
Color difference (ΔE) | Within same batch: ≤ 2.0; Between different batches of same color code: ≤ 3.0 | |
Impact resistance | ≥50kg.cm | |
Pencil hardness | ≥2H | |
Adhesion | Class 0 (cross-cut intact, no coating detachment) | |
Gloss deviation | Gloss < 10 | ±5 |
20 ≤ Gloss < 40 | ±7 | |
Gloss ≥ 80 | ±8 | |
Resistance to hydrochloric acid | No change (5% HCl solution) | |
Resistance to nitric acid | No blistering or other changes; ΔE ≤ 5.0 | |
Solvent resistance | PVD and PVDF: no substrate exposure, no blushing, no dissolution | |
Mortar resistance | No change | |
Abrasion resistance | ≥5L/ μm | |
Salt spray resistance | Class 1 or better | |
Resistance to accelerated weathering | Color difference ΔE ≤ 3.0; Chalking class 0; no cracking or peeling | |
Damp heat resistance | No blistering of coating / plated layer; No delamination of honeycomb adhesive bond; No rust spots on stainless steel substrate | |
Boiling water resistance | PVD titanium coating and PVDF coating: no blushing, blistering, or delamination | |

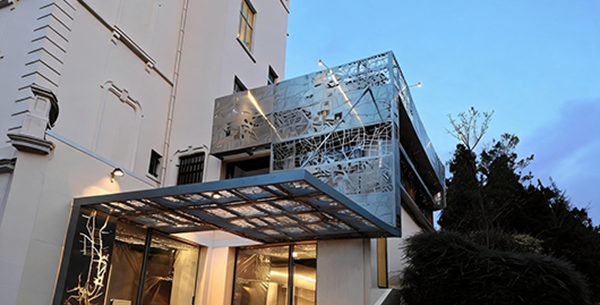

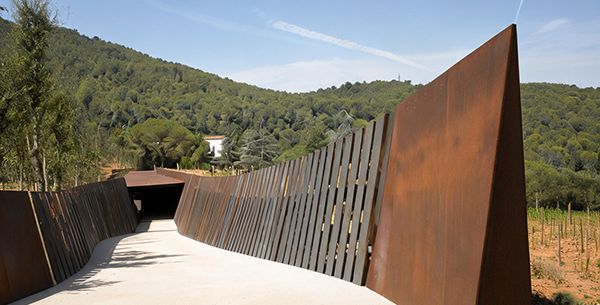

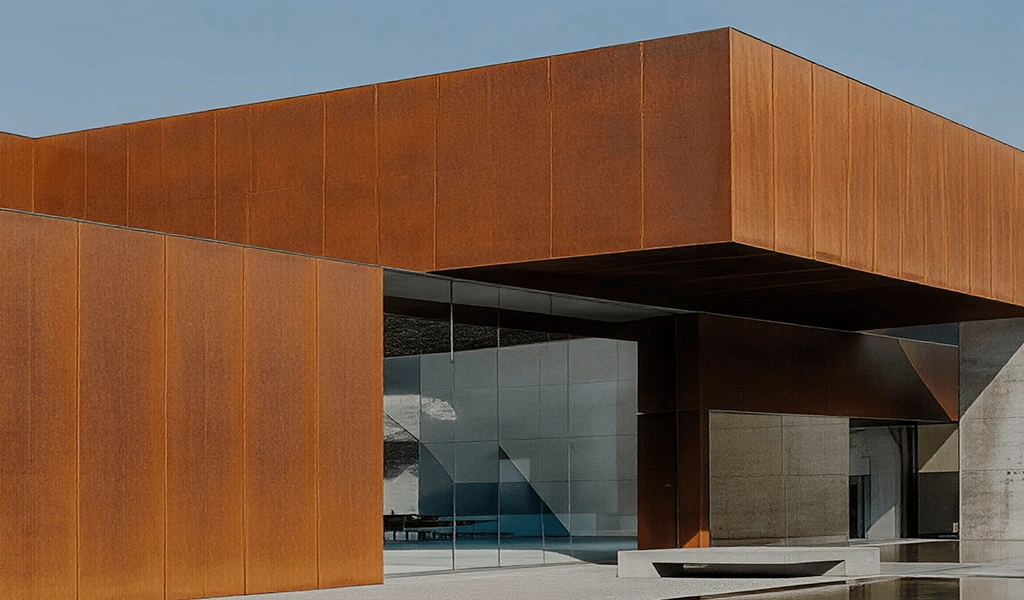

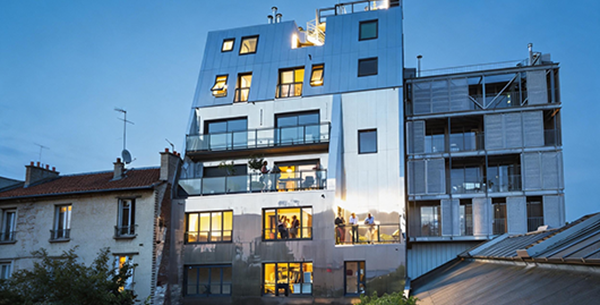

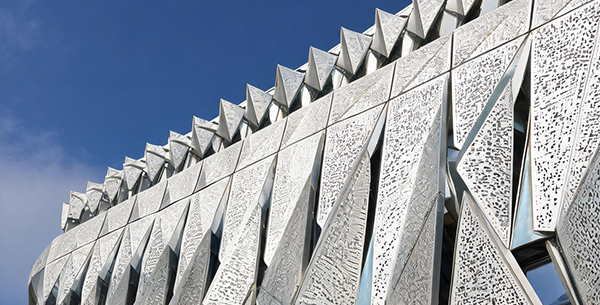

Steel composite panels perform exceptionally in facades, storefronts, tunnel linings, and shading systems.
Advanced processing techniques ensure a smooth, robust surface that maintains its integrity over the long term.
Its sleek modern surfaces and versatile finishes creates lasting contemporary looks.
Its unique and classical finish is highly favoured for museums and libraries.
Its rich warm tones and natural patina create a timeless finish that ages beautifully.
