IndiaWILLSTRONG® ArtAlu
Architectural Art Aluminium
Engineered for maximum versatility. These single-sheet panels can be freely formed into flat, curved, perforated, or fully custom shapes while retaining exceptional strength and a flawless finish, empowering architects and designers with complete creative freedom.
Bespoke geometric design cut from 3003/5052 aluminum alloy. Finished with durable KYNAR500 PVDF coating and equipped with mounting brackets.
Combines artistic expression with high strength and longevity.

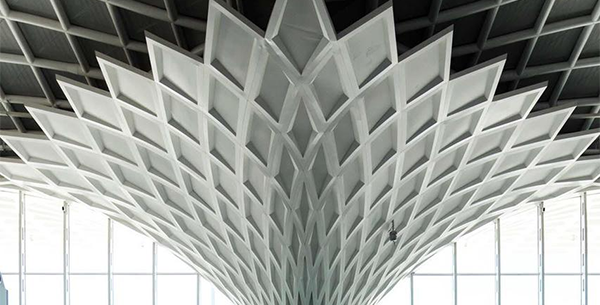

A bold hyperbolic design that works as hard as it looks.

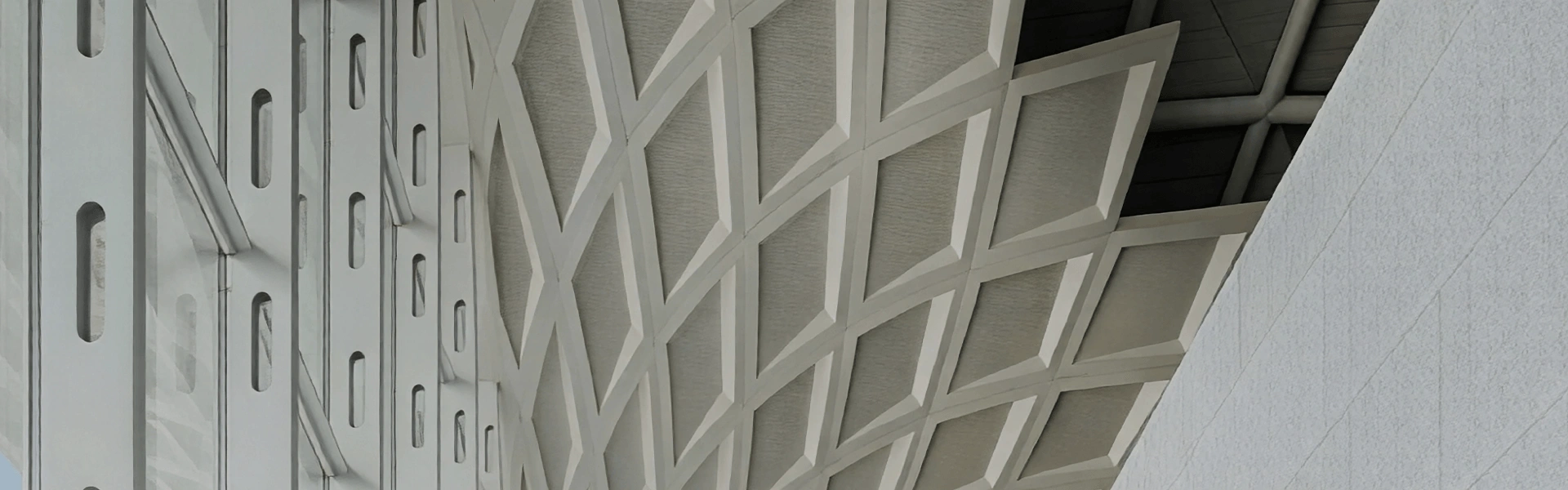

Crafted by WILLSTRONG, these art aluminium panels feature dynamic angled forms that beautifully echo the organic shapes of nature.
Built from durable aluminium alloy with KYNAR500 PVDF coating, assembled with robust mounting brackets.
It simply does the work efficiently, quietly, and effectively.
Thickness: 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm
Width | 1000mm-2000mm | ||
Length | Customized | ||
Standard Solid | √ | √ | √ |
Metallic | √ | √ | √ |
Woodgrain | √ | √ | √ |
Natural Stone | √ | √ | √ |
Chameleon | √ | √ | √ |
Nano Coating | √ | √ | √ |
Anodized | √ | √ | √ |
Design | √ | √ | √ |
Special Finishes | √ | √ | √ |
Remark: Custom dimensions are available upon request
Country | Test Standard | Rating |
EU | EN13501-1 | A1-s1, d0 |
China | GB 8624-2012 | A1-s1, d0 |
| THICKNESS | STANDARDS | UNIT | 2.5mm | 3mm | |||
|---|---|---|---|---|---|---|---|
| FR-A1,S1,d0 | FR-A1,S1,d0 | ||||||
| Thickness of Aluminum Layers | mm | 2.5 | 3 | ||||
| Weight | kg/m² | 6.75 | 8.1 | ||||
| Width | mm | 1220/1250/1500 | 1220/1250/1500 | ||||
| TECHNICAL PROPERTIES | |||||||
| Section modulus | W | cm³/m | 1 | 1.5 | |||
| Rigidity | EJ | KNcm²/m | 1000 | 1730 | |||
| Alloy/Temper of Aluninum Layers | 3003H26 | 3003H26 | |||||
| Modulus of Elasticity | N/mm² | 70000 | 70000 | ||||
| Tensile Strength of Aluminum | N/mm² | ≥130 | ≥130 | ||||
| 0.2%Proof Stress | N/mm² | ≥90 | ≥90 | ||||
| Elongation | % | ≥5 | ≥5 | ||||
| Linear Thermal Expansion | 2.4mm/m at 100°C temperature | 2.4mm/m at 100°C temperature | |||||
| SURFACE | |||||||
| Lacquering | Coating Fluorocarbon (PVDF) / Anodized Film | Coating Fluorocarbon (PVDF) / Anodized Film | |||||
| Film Thickness | µm | ≥40/≥15 | ≥40/≥15 | ||||
| Gloss(initial value) | 30-70 | 30-70 | |||||
| Pencil Hardness | H | H | |||||
| ACOUSTICAL PROPERTIES | |||||||
| Sound Absorption Factor | - | ||||||
| Sound Transmission Loss | db | - | |||||
| THERMAL PROPERTIES | |||||||
| Thermal Resistance | R | m²k/w | 0.07 | 0.09 | |||
| Thermal conductivity | w/mk | 0.49 | 0.44 | ||||
| Heat transition coefficient | U | w/m²k | 5.68 | 5.58 | |||
| Temperature Resistance | °C | -50 | 80 | -50 | 80 | ||
Color difference (ΔE) | For white coating: ≤ 0.6; for other colors: ≤ 1.0 | |
Impact resistance | ≥50kg.cm | |
Pencil hardness | ≥1H | |
Adhesion | Class 0 (cross-cut) | |
Gloss deviation | Gloss < 30 | ±5 |
30 ≤ Gloss < 70 | ±7 | |
Gloss ≥ 70 | ±10 | |
Resistance to hydrochloric acid | No change (5% HCl solution) | |
Resistance to nitric acid | No blistering or other changes; ΔE ≤ 5.0 | |
Solvent resistance | No substrate exposure | |
Mortar resistance | No change | |
Abrasion resistance | ≥5L/ μm | |
Salt spray resistance | Class 1 or better | |
Resistance to accelerated weathering | Color difference ΔE ≤ 3.0; Gloss retention ≥ 70%; Other aging properties: Class 0 | |
Damp heat resistance | Class 1 or better | |
Boiling water resistance | Cross-cut test: Class 0 | |
Case Study

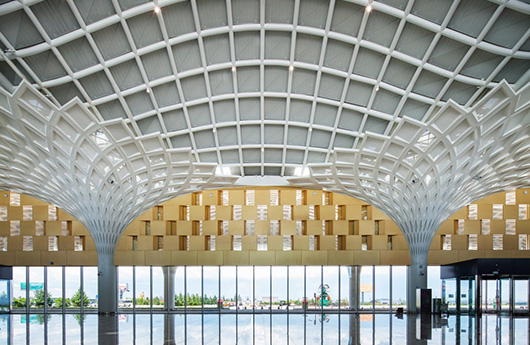

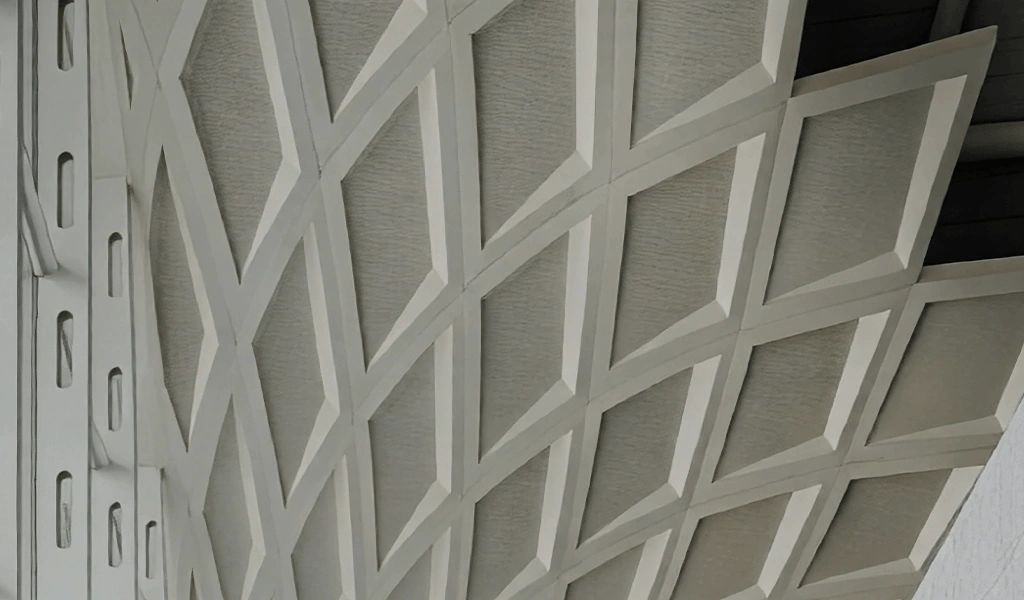

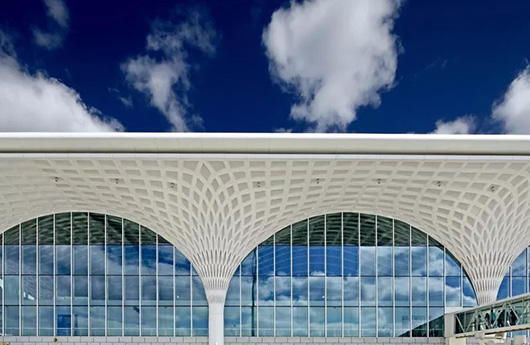

WILLSTRONG® ArtAlu were expertly crafted to realize the striking hyperbolic forms and complex curved lines of Hailar Airport.
The material's exceptional versatility allowed our deep processing team to precisely fabricate intricate shapes, seamless transitions, and flowing contours with outstanding accuracy.
International standard for occupational health and safety management systems.
Download PDF
International standard for quality management systems and processes.
Download PDF
International standard for environmental management systems.
Download PDF
The edge, roof, and area around the window, not only the flat surface.
Thanks to our deep processing services, the sleek and seamless visual effect of acm on the building.

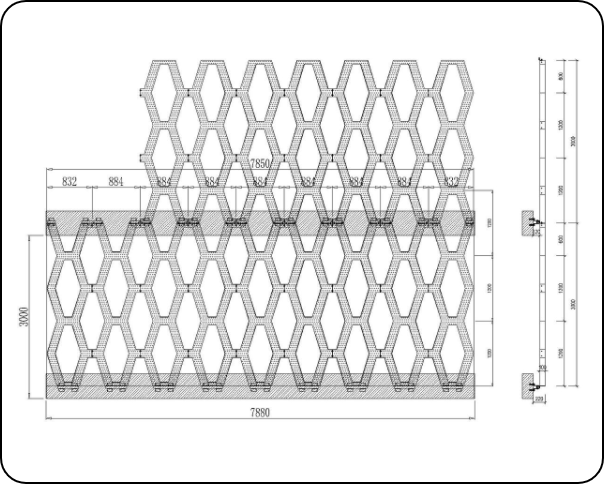

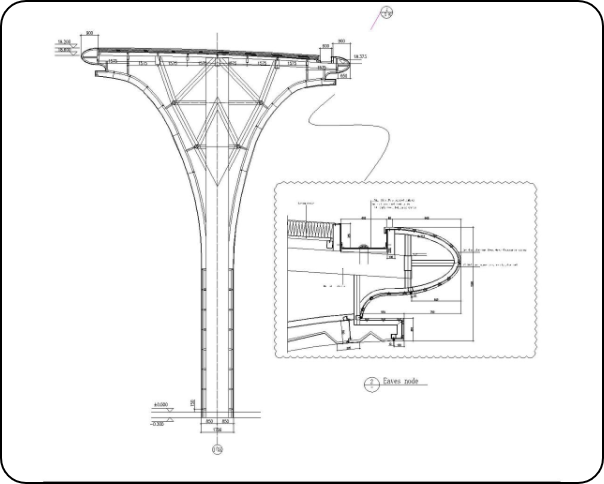

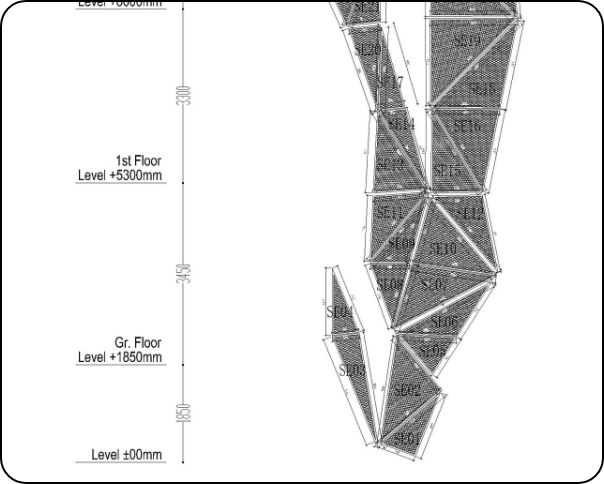

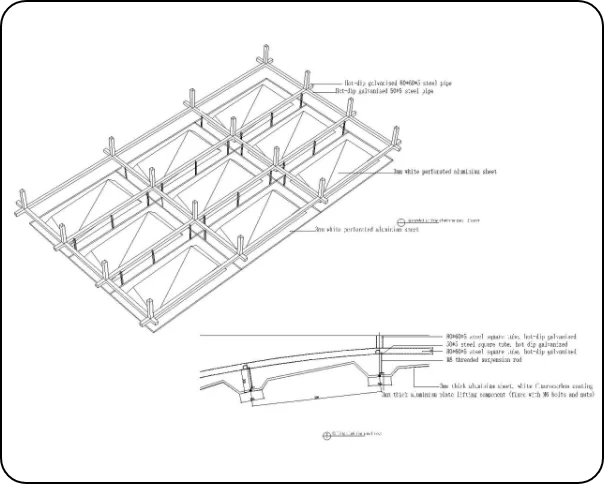

Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.

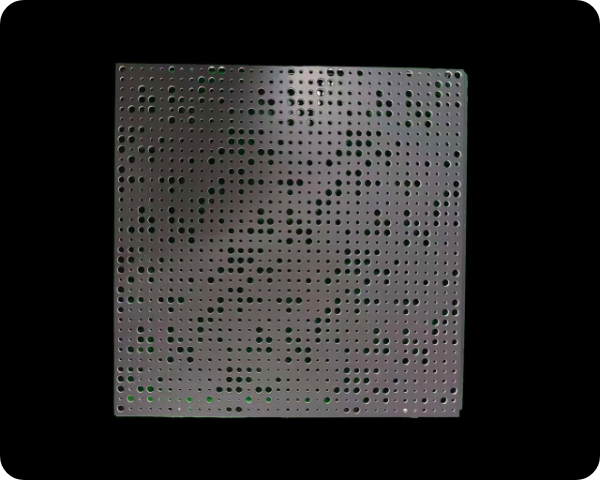

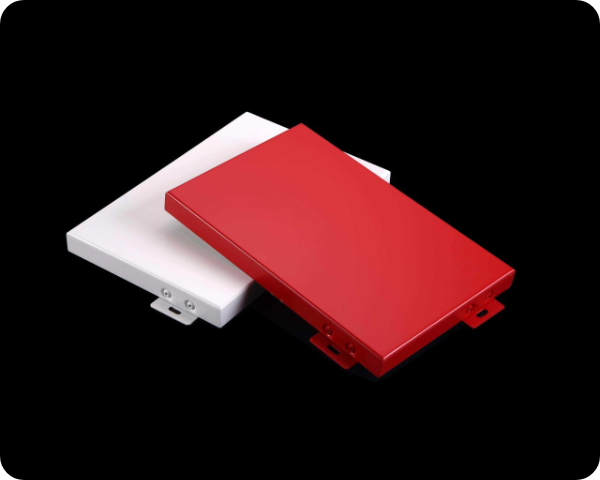

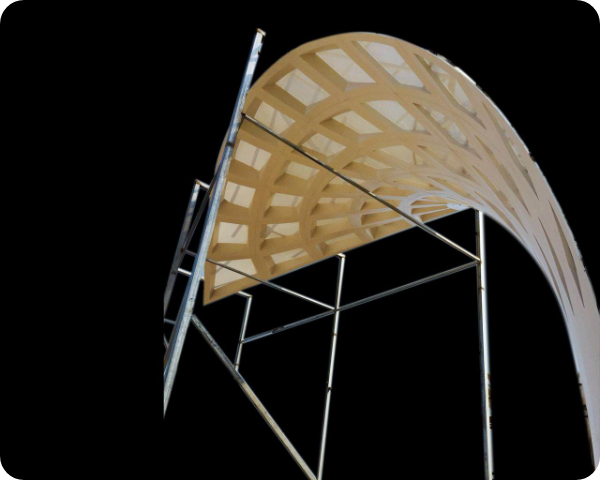

The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.

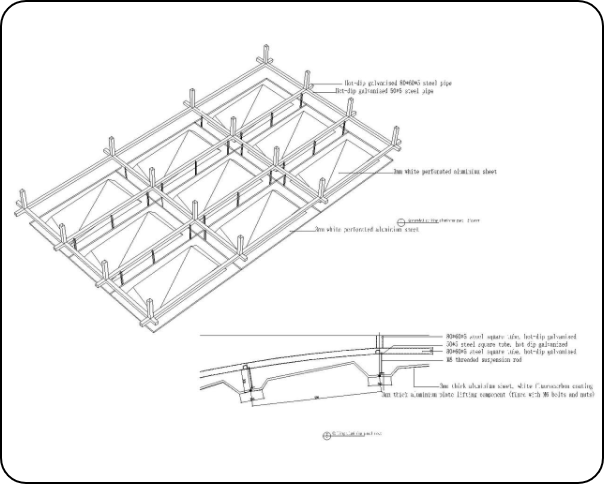

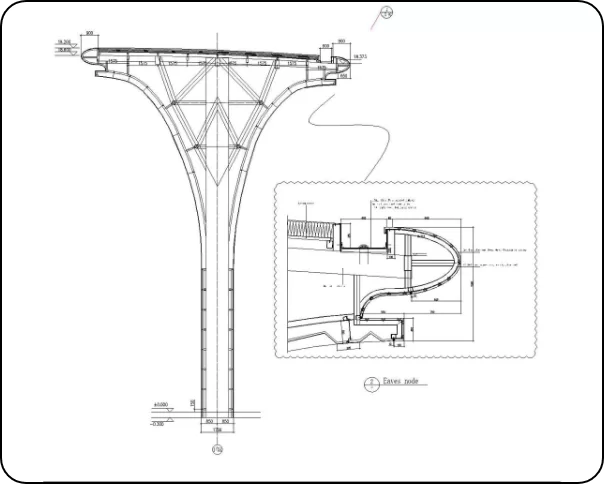

Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.

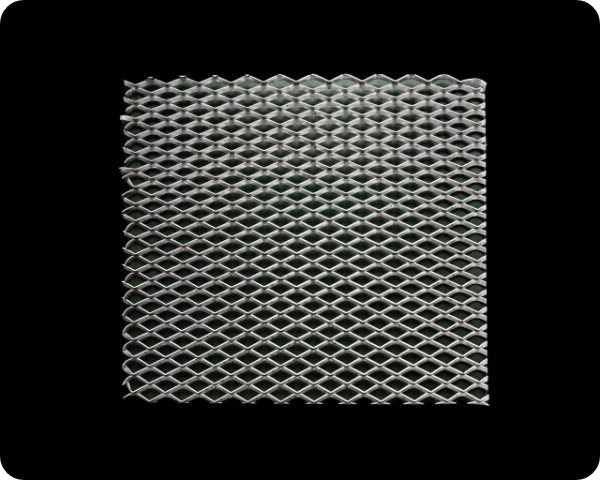

The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
At WILLSTRONG, we offer an extensive range of colours, shines, and textures. Our colorimetry laboratory can precisely match any RAL, PANTONE, or NCS colour, and produce fully customised finishes from a physical sample.
Discover how our finishing collections elevate your projects to a new level of excellence and distinction.
