IndiaWILLSTRONG® AHP
Aluminium Honeycomb Panel
Aluminum Honeycomb Panels (AHP) stand out for their light weight, strong structure, and greater rigidity compared to ACP. They curve beautifully, provide effective insulation, and make it easy to create large, attractive, and durable designs.

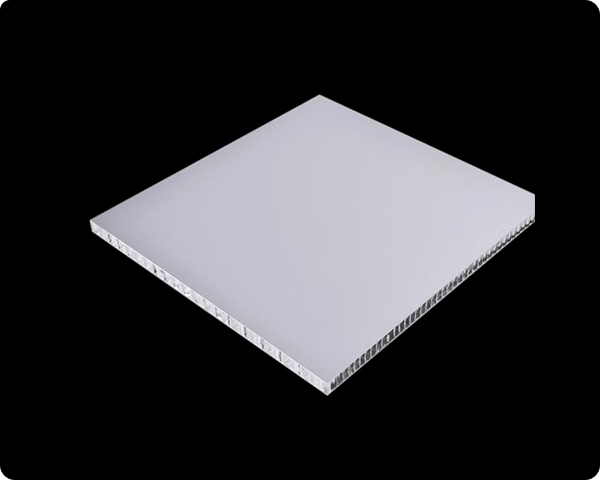

A hexagonal aluminum honeycomb core bonded between two aluminum skins provides outstanding structural rigidity while keeping the overall panel remarkably lightweight.
Its excellent strength-to-weight ratio, combined with A2 fire performance and dimensional stability, makes it ideal for architectural façades and interior applications.
A lightweight foamed core enclosed between two aluminum skins creates a stable composite panel with balanced strength, insulation and overall performance.
Its uniform core structure, together with A2 fire performance and reliable dimensional stability, makes it well suited for demanding architectural and interior applications.
An engineered folded aluminum core positioned between two aluminum skins delivers enhanced rigidity and efficient load distribution with reduced overall panel weight.
Its distinctive structural geometry, combined with A2 fire performance and excellent dimensional stability, provides a strong solution for modern architectural and decorative applications.
A corrugated aluminum core bonded between two aluminum skins provides dependable stiffness and strength while maintaining a lightweight and efficient panel construction.
Its continuous wave structure, together with A2 fire performance and good dimensional stability, makes it suitable for façades, ceilings and various architectural applications.
Thickness: Interior 4mm-20mm, Exterior 20-100mm
Metal Sheet Thickness | 0.5-1.2mm | ||
Width | 1220mm | 1500mm | 2000mm |
Length | Custom cut length | ||
Standard Solid | √ | √ | √ |
Metallic | √ | √ | √ |
Woodgrain | √ | √ | √ |

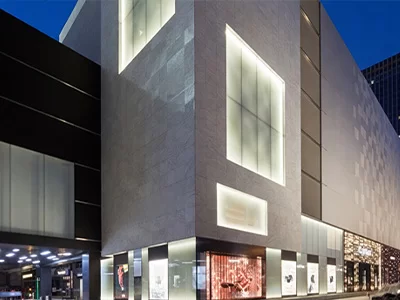

Natural Stone | √ | √ | √ |
Chameleon | √ | √ | √ |
Nano Coating | √ | √ | √ |
Anodized | √ | √ | √ |
Design | √ | √ | √ |
Special Finishes | √ | √ | √ |
Remark: Custom dimensions are available upon request
| THICKNESS | STANDARDS | UNIT | 10 | 12 | 20 | 25 | |
|---|---|---|---|---|---|---|---|
| Fire | FR-A2,S1,d0 | FR-A2,S1,d0 | FR-A2,S1,d0 | FR-A2,S1,d0 | |||
| Thickness of Aluminum Layers | mm | 0.7/0.5 | 0.7/0.7 | 1.0/1.0 | 1.0/1.0 | ||
| Weight | kg/m² | 4.6 | 5.4 | 7.1 | 7.3 | ||
| Width | mm | 1220/1250/1500/1800 | 1220/1250/1500/1800 | 1220/1250/1500/1800 | 1220/1250/1500/1800 | ||
| TECHNICAL PROPERTIES | |||||||
| Section modulus | W | cm³/m | 5 | 6.7 | 18.1 | 23.1 | |
| Rigidity | EJ | KNcm²/m | 16500 | 35000 | 138900 | 221600 | |
| Alloy/Temper of Aluninum Layers | 3003H26 | 3003H26 | 3003H26 | 3003H26 | |||
| Modulus of Elasticity | N/mm² | 70000 | 70000 | 70000 | 70000 | ||
| Tensile Strength of Aluminum | N/mm² | ≥130 | ≥130 | ≥130 | ≥130 | ||
| 0.2%Proof Stress | N/mm² | ≥90 | ≥90 | ≥90 | ≥90 | ||
| Elongation | % | ≥5 | ≥5 | ≥5 | ≥5 | ||
| Linear Thermal Expansion | 2.4mm/m at 100°C temperature | 2.4mm/m at 100°C temperature | 2.4mm/m at 100°C temperature | 2.4mm/m at 100°C temperature | |||
| CORE | Aluninum Honeycomb | Aluninum Honeycomb | Aluninum Honeycomb | Aluninum Honeycomb | |||
| SURFACE | |||||||
| Lacquering | Coil Coating Polyester(PET) | Coil Coating Polyester(PET) | Coil Coating Fluorocarbon(PVDF) | Coil Coating Fluorocarbon(PVDF) | |||
| Film Thickness | µm | ≥18 | ≥18 | ≥25 | ≥25 | ||
| Gloss(initial value) | 30-90 | 30-90 | 30-80 | 30-80 | |||
| Pencil Hardness | H-2H | H-2H | H | H | |||
| ACOUSTICAL PROPERTIES | |||||||
| Sound Absorption Factor | 0.05-0.07 | 0.05-0.07 | |||||
| Sound Transmission Loss | db | 21-25 | 21-25 | ||||
| THERMAL PROPERTIES | |||||||
| Thermal Resistance | R | m²k/w | 0.07 | 0.07 | 0.09 | 0.09 | |
| Thermal conductivity | w/mk | 0.49 | 0.44 | 0.44 | |||
| Heqt transition coefficient | U | w/m²k | 5.68 | 5.68 | 5.58 | 5.58 | |
| Temperature Resistance | °C | -10 | 40 | -50 | 80 |
EU | EN13501-1 | A2-s1, d0 |
EU | EN13501-1 | B-s1, d0 |
Germany | DIN4102-7 | Passed |
Sigapore | BS476-Part 6 | Fire propagation index=1.0 |
Sigapore | BS476-Part 7 | Class 0 |
USA | NFPA285 | Passed |
USA | ASTM E84-15a | Flame Spread Index 5, Smoke Developed Index 0; |
China | GB 8624-2012 | A2-s1, d0 |
China | GB 8624-2012 | B-s1, d0 |
Russia | GOST31251 | Passed |
Color difference (ΔE) | For white coating: ≤ 0.6; for other colors: ≤ 1.0 | |
Flexibility (T-bend) | ≤2T | ≤3T |
Impact resistance | ≥50kg.cm | ≥20kg.cm |
Surface hardness (pencil) | ≥HB | |
Gloss deviation | ≤10 | |
Resistance to hydrochloric acid | No change (5% HCl solution) | No change (2% HCl solution) |
Resistance to alkali | No change (5% NaOH solution) | No change (2% NaOH solution) |
Oil resistance | No change | |
Solvent resistance | No substrate exposure | |
Case Study
WILLSTRONG® aluminum honeycomb panels were applied to the exterior wall of Xi'an Zhongda International Mall in 2015. The lightweight honeycomb structure delivers exceptional rigidity and flatness, enabling the clean, modern aesthetic of the mall's facade. This project demonstrates how advanced aluminum honeycomb systems elevate commercial architecture with design versatility and lasting durability.
The edge, roof, and area around the window, not only the flat surface.
Thanks to our deep processing services, the sleek and seamless visual effect of acm on the building.

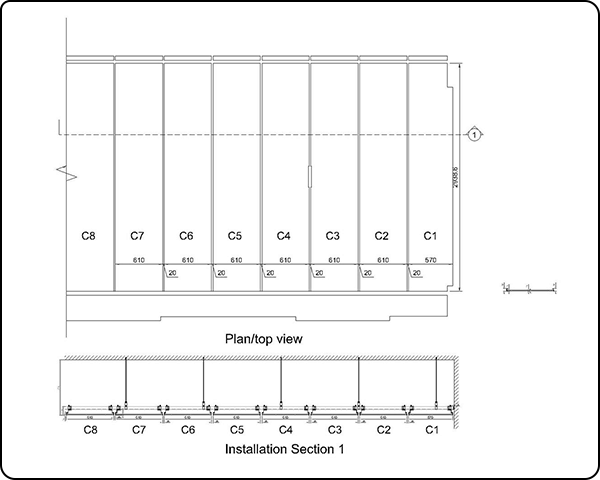

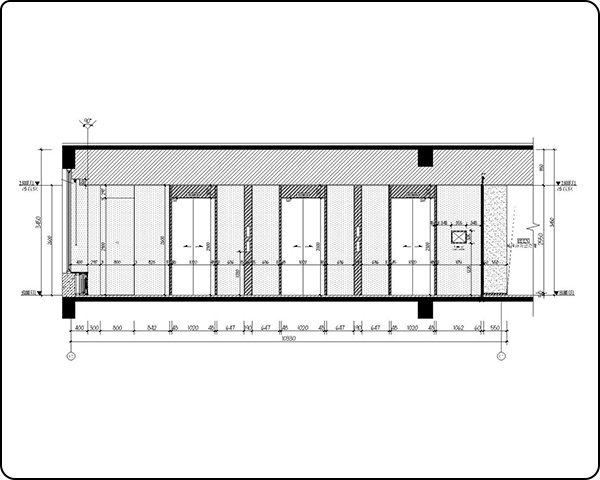

Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.

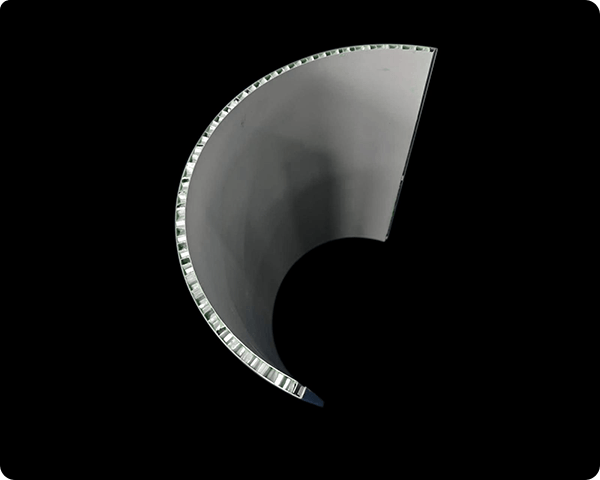

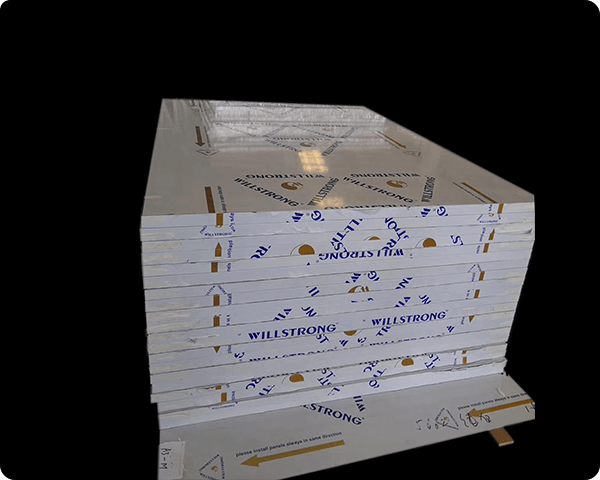

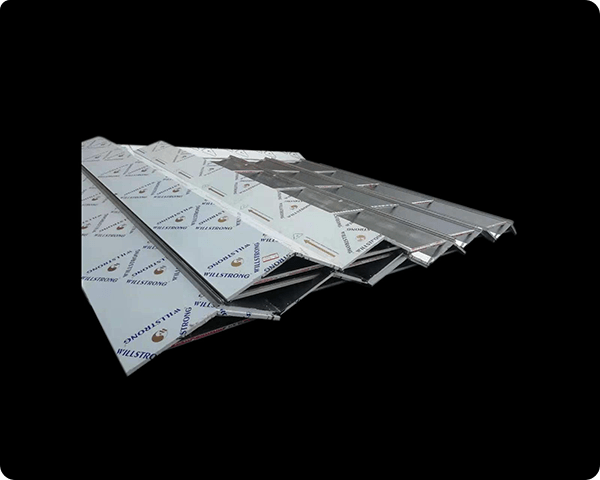

The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.

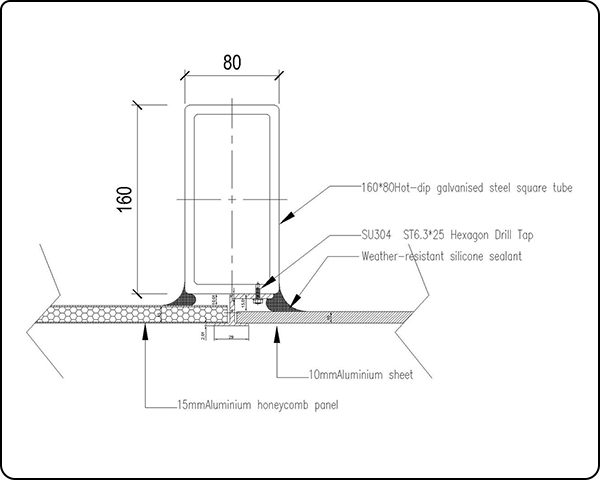

Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.

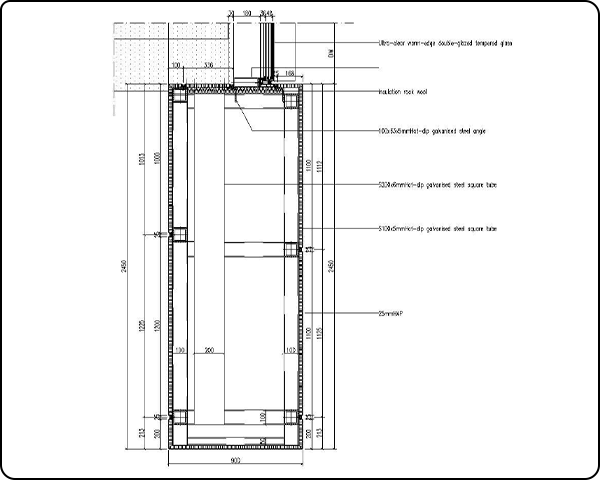

Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
Our technical drawings provide a precise geometric roadmap, detailing the exact structural specifications for sharp, crack-free edges.
The finished piece translates these calculations into a ready-to-install component featuring crisp architectural lines and a flawless surface finish.
At WILLSTRONG, we offer an extensive range of colours, shines, and textures. Our colorimetry laboratory can precisely match any RAL, PANTONE, or NCS colour, and produce fully customised finishes from a physical sample.
Discover how our finishing collections elevate your projects to a new level of excellence and distinction.
Its unique and classical finish is highly favoured for museums and libraries.
Some buildings buildings. Some buildings buildings. Some buildings buildings.
