A curtain wall joint can look properly sealed at installation and still develop leaks, cracks, or separation after several seasons. In many cases, the problem is not simply poor sealant quality. The joint may be required to accommodate more movement than the sealant can safely handle.

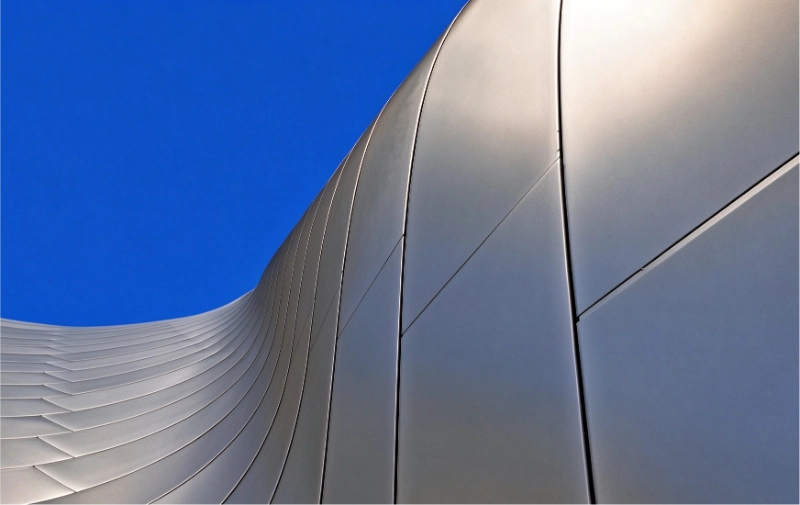

Aluminum composite panels expand when temperatures rise and contract as they cool down. Wind pressure and suction cause facade components to deflect, while building frames experience small movements under changing loads. Installation tolerances also mean that the actual joint width may differ from the dimension shown on the drawings.

These movements accumulate at the interfaces between facade panels. If a sealant joint cannot accommodate the resulting displacement, stress concentrates at the bond line or within the sealant itself.

The important question is therefore not simply whether a sealant is flexible. It is whether its mechanical properties match the movement demands of the joint.

Thermal Expansion Is a Continuous Process

Aluminum has a relatively high coefficient of thermal expansion compared with many building materials. Its dimensional change can be estimated using a basic engineering relationship:

Here, ΔL represents the change in length, α is the coefficient of thermal expansion, L is the original length, and ΔT is the temperature change.

For illustration, aluminum has a typical thermal expansion coefficient of approximately 23 × 10⁻⁶ per °C. A 3-meter panel experiencing a 60°C temperature change would have a theoretical free expansion of approximately 4.1 mm.

This is an illustrative calculation, not a design value for every facade. Actual panel temperatures depend on solar exposure, color, orientation, ventilation, and local climate. The movement transferred to an individual joint also depends on panel dimensions, support locations, connection details, and the overall facade configuration.

Nevertheless, the calculation demonstrates why joint movement cannot be treated as a minor installation detail. Even moderate dimensional changes can become significant when repeated across a large facade.

Wind Loads Add Another Movement Component

Thermal expansion is only part of the problem. Wind pressure and suction can cause facade panels and supporting members to deflect. The magnitude and distribution of this movement depend on panel stiffness, support spacing, connection design, building height, and the applicable wind design criteria.

The sealant must accommodate the relative movement between the surfaces to which it is bonded. This is different from the total deflection of an individual panel.

A well-designed support system manages structural loads and limits excessive deformation. The sealant then performs its intended role at the joint rather than compensating for inadequate structural detailing.

This distinction matters because increasing sealant flexibility cannot correct every facade movement problem. If a connection is loose, a panel is inadequately supported, or the joint geometry is unsuitable, the underlying issue must be addressed at the system level.

What Modulus Tells Engineers

Modulus describes a material's resistance to deformation under an applied stress. In sealant selection, it helps engineers understand how much stress may develop as the material deforms.

A relatively high-modulus sealant generally resists deformation more strongly than a lower-modulus material under comparable test conditions. Depending on the joint design and substrate, this can transfer greater stress to the bonded interfaces.

A lower-modulus sealant may accommodate movement with less force, but low modulus alone does not guarantee suitability. The material must also have the required movement capability, adhesion, recovery behavior, weather resistance, and compatibility with the substrates.

Modulus values also need to be interpreted correctly. Results depend on the test method, temperature, curing condition, and other factors. Engineers should compare products using relevant technical data rather than treating a single modulus number as a complete measure of performance.

Understanding where a sealant fails helps identify whether the problem lies in the material, the joint design, the installation process, or a combination of factors.

Neither failure mode should be diagnosed from appearance alone. A joint may show mixed failure, localized defects, or damage associated with incorrect geometry. Investigators should examine the bond surfaces, sealant condition, joint dimensions, substrate preparation, and surrounding facade connections.

The distinction is useful because the remedies are different. Replacing a sealant without correcting contamination or incompatible substrates may reproduce adhesion failure. Choosing a more flexible material without correcting an undersized joint may leave the underlying movement problem unresolved.

Sealant movement capability is commonly expressed as a percentage of the original joint width under specified test conditions. However, the rated movement capability of a product is not the same as the movement that a particular joint can safely accommodate throughout its service life.

Engineers need to establish the expected movement range and compare it with the sealant's rated capability, the specified joint geometry, and the installation conditions. The design must also account for the joint width at the time of application, rather than assuming that the nominal drawing dimension will always be achieved on site.

For example, a joint installed when the panels are relatively cool may become narrower as temperatures rise. If the sealant is applied when the joint is already near its minimum expected width, subsequent expansion may place it under substantial compression. Conversely, application under hot conditions can leave the joint more vulnerable to excessive extension as the panels cool.

Construction temperature also matters because it affects application behavior, substrate conditions, and curing. Product-specific requirements for application temperature, moisture, surface preparation, and curing time must be followed. Surface skin formation, or tack-free time, should not be confused with full cure or readiness for unrestricted movement.

This leads to a broader engineering insight: the joint is a designed movement component, not merely a gap that needs to be filled.

A dependable joint begins with the movement requirements of the complete facade assembly. Panel dimensions, support arrangements, connection details, material properties, and environmental exposure should be considered before the sealant is specified.

Design teams should verify that the selected sealant is intended for the relevant application and is compatible with the actual substrates. Where necessary, adhesion and compatibility testing can help confirm suitability. Joint dimensions should be checked against the manufacturer's technical guidance and the anticipated movement range.

Installation quality is equally important. Surfaces must be prepared correctly, backing materials and bond geometry must follow the approved detail, and the sealant should be applied within the specified environmental conditions. Site inspections can identify inconsistent joint widths, incomplete filling, poor tooling, or early signs of bond failure before these issues become concealed or widespread.

For facade systems using aluminum composite panels, fire-resistant composites, or aluminum honeycomb panels, these checks should form part of the wider coordination process. Different panel constructions and support details can create different movement conditions, so a sealant detail should not automatically be transferred from one facade assembly to another without verification.

Further context on facade applications can be found in the WILLSTRONG® project portfolio, where project examples provide a starting point for understanding the range of facade systems used in different building settings. Project-specific sealant specifications and performance should always be verified against the applicable design documents and technical records.
